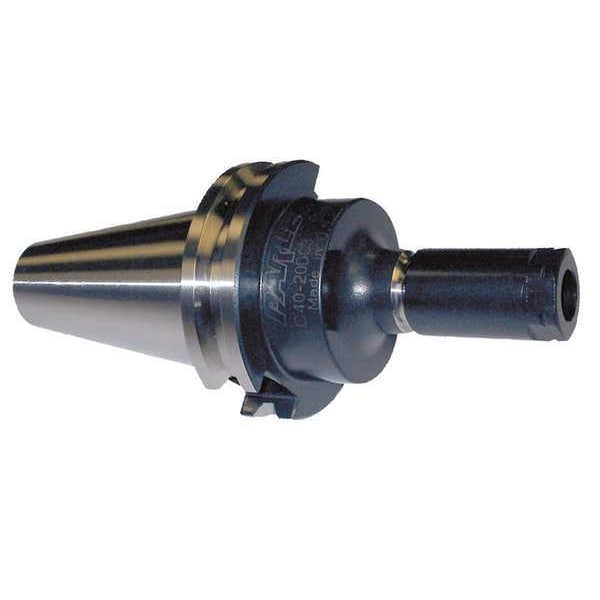

Collet Chuck, CAT40, DA200, Proj 3.000 In
| Item | Collet Chuck |
|---|---|
| Shank Type | Taper |
| Taper Size | CAT40 |
| Collet Series | DA200 |
| Projection | 3 in |
| ANSI Number | C40-20DC3 |
| Material | Steel |
| Nose Dia. | 0.81 in |
| Nut Dia. | 0.81 in |
| Bore Depth | 3 in |
| Coolant Fed | Coolant Through |
| ANSI Code | C40-20DC3 |
| Features | Durable Service Life;Hardened to 52 to 56 HRC to Avoid Damaging Collet Chuck Threads |
| Number of Coolant Ports | 0 |
| T.I.R. Tolerance | 0 in |
| Finish | Black Oxide |
| Included Nut Type | Not Applicable |
| Standards | AISI 8620 |
| Compatible Collet Wrench | ECN75W |
| Compatible Nut Model Number | ECN75 |
| Contact Type | Single Contact |
| Compatible Backup Screw Model Number | BS-20 |
| Speed - Maximum | 25,000 rpm |
| Nut Diameter | 1.1 in |
| Coolant Supply | Non-Coolant Through |
| Compatible Collet Series | DA200 |
| Product Type | CAT Collet Chuck |
| Includes Nut | Nut Included |
| Torque - Maximum | 30 ft-lb |
| Shank Diameter | 0.393 in |
| Package Quantity | 1 |
