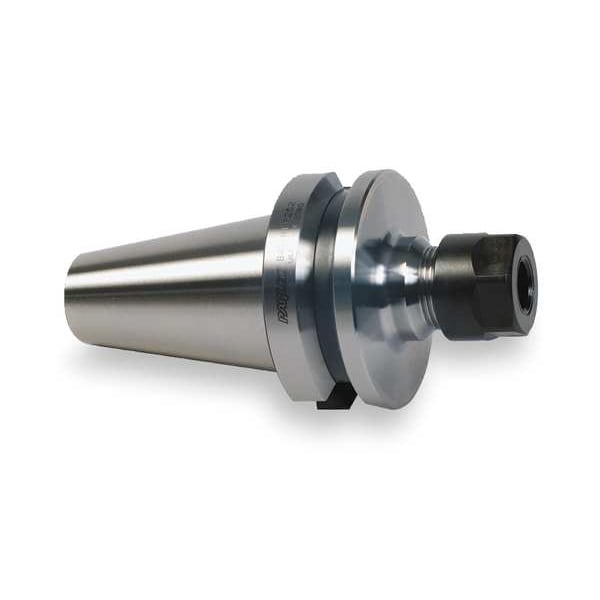

Collet Chuck, CAT50, ER25, Proj 8.000 In
| Item | Collet Chuck |
|---|---|
| Shank Type | Taper |
| Taper Size | CAT50 |
| Collet Series | ER25 |
| Projection | 8 in |
| Material | Steel |
| Bore Depth | 4 in |
| Nut Dia. | 1.67 in |
| ANSI Number | C50-25ER812 |
| Nose Dia. | 1.67 in |
| Features | Durable Service Life;Hardened to 52 to 56 HRC to Avoid Damaging Collet Chuck Threads |
| ANSI Code | C50-25ER812 |
| Includes Nut | Nut Included |
| Product Type | CAT Collet Chuck |
| Compatible Collet Size - Maximum | 0.63 in |
| Finish | Nickel Chrome |
| Compatible Nut Model Number | 25ERN |
| Speed - Maximum | 20,000 rpm |
| Coolant Supply | Non-Coolant Through |
| Included Nut Type | Not Applicable |
| Number of Coolant Ports | 0 |
| Torque - Maximum | 95 ft-lb |
| Contact Type | Single Contact |
| Shank Diameter | 0.63 in |
| Compatible Collet Wrench | 25ERNW |
| Balance Rating | G2.5 |
| Compatible Backup Screw Model Number | BS-11 |
| T.I.R. Tolerance | 0 in |
| Nut Diameter | 1.64 in |
| Standards | DIN 6499 |
| Compatible Collet Size - Minimum | 0.039 in |
| Compatible Collet Series | ER25 |
| Package Quantity | 1 |
