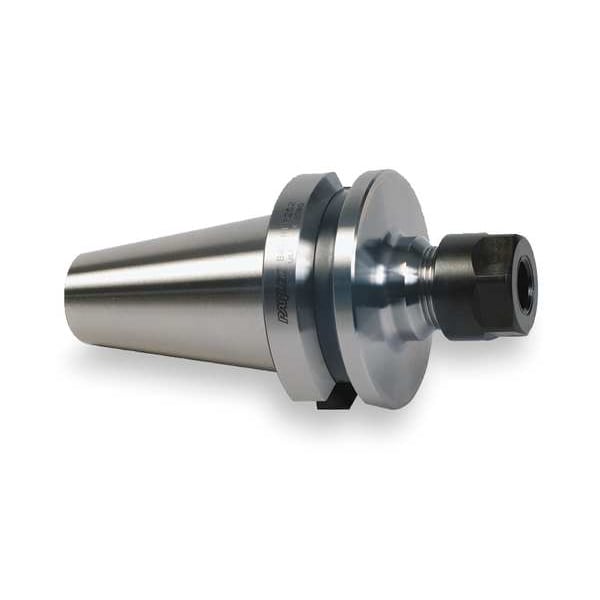

Collet Chuck, CAT50, ER32, Proj 10.000 In
| Item | Collet Chuck |
|---|---|
| Shank Type | Taper |
| Taper Size | CAT50 |
| Collet Series | ER32 |
| Projection | 10 in |
| Nose Dia. | 1.97 in |
| Bore Depth | 3.88 in |
| Material | Steel |
| ANSI Number | C50-32ER1012 |
| Nut Dia. | 1.97 in |
| Features | Durable Service Life;Hardened to 52 to 56 HRC to Avoid Damaging Collet Chuck Threads |
| ANSI Code | C50-32ER1012 |
| Coolant Supply | Non-Coolant Through |
| Nut Diameter | 1.97 in |
| Compatible Collet Series | ER32 |
| Balance Rating | G2.5 |
| Shank Diameter | 0.788 in |
| Included Nut Type | Not Applicable |
| Torque - Maximum | 125 ft-lb |
| Compatible Collet Size - Maximum | 0.787 in |
| Contact Type | Single Contact |
| Compatible Backup Screw Model Number | BS-18 |
| Finish | Nickel Chrome |
| Product Type | CAT Collet Chuck |
| Standards | DIN 6499 |
| Number of Coolant Ports | 0 |
| T.I.R. Tolerance | 0 in |
| Speed - Maximum | 20,000 rpm |
| Includes Nut | Nut Included |
| Compatible Collet Wrench | 32ERNW |
| Compatible Collet Size - Minimum | 0.078 in |
| Compatible Nut Model Number | 32ERN |
| Package Quantity | 1 |
