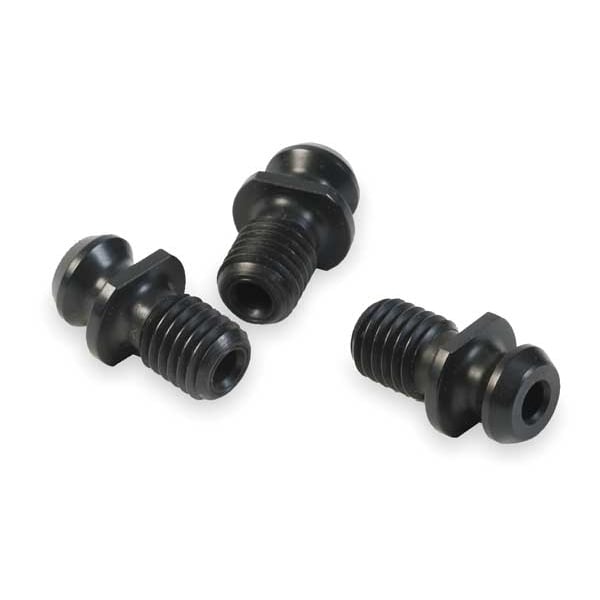

Ret Knob, ANSI/ISO, 5/8-11, 45 Deg, w/Hole
| Item | Retention Knob |
|---|---|
| Overall Length | 1.62 in |
| Neck Dia. | 0.49 in |
| Thread Size | 5/8"-11 |
| Knob Dia. | 0.74 in |
| Flange to Knob Length | 0.44 in |
| Angle | 45 Degrees |
| Coolant Hole Dia. | 0.281 in |
| Taper Size | CAT40 |
| Flange to Angle Length | 0.44 in |
| Knob Outside Dia. | 0.74 in |
| Angle Radius | 45 deg |
| Standards | ANSI |
| Flange to Beginning of Knob Length | 0.44 in |
| Flange to End of Knob Length | 0.64 in |
| Coolant Hole Diameter | 0.281 in |
| Neck Diameter | 0.49 in |
| Knob Outside Diameter | 0.74 in |
| Coolant Fed | Coolant Through |
| Package Quantity | 1 |
