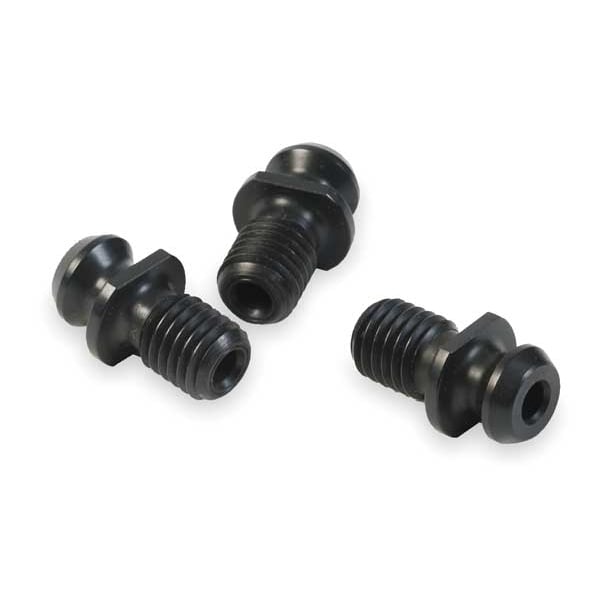

Retention Knob, MAS-BT, 5/8-11, 60 Deg
| Item | Retention Knob |
|---|---|
| Overall Length | 2-1/4 in |
| Material | High Speed Steel |
| Features | Case Hardened to Ensure Long Service Life |
| Thread Size | 5/8"-11 |
| Angle | 60 Degrees |
| Flange to Knob Length | 0.99 in |
| Knob Dia. | 0.588 in |
| Neck Dia. | 0.393 in |
| Taper Size | CAT40 |
| Flange to Angle Length | 0.99 in |
| Coolant Fed | Non-Coolant Through |
| Knob Outside Dia. | 0.588 in |
| Material - Machining | High Speed Steel |
| Standards | MAS |
| Angle Radius | 60 deg |
| Resistance Properties | Shock Resistant |
| Knob Outside Diameter | 0.59 in |
| Flange to End of Knob Length | 1.268 in |
| Flange to Beginning of Knob Length | 0.99 in |
| Coolant Hole Diameter | Not Applicable |
| Neck Diameter | 0.394 in |
| Package Quantity | 1 |
