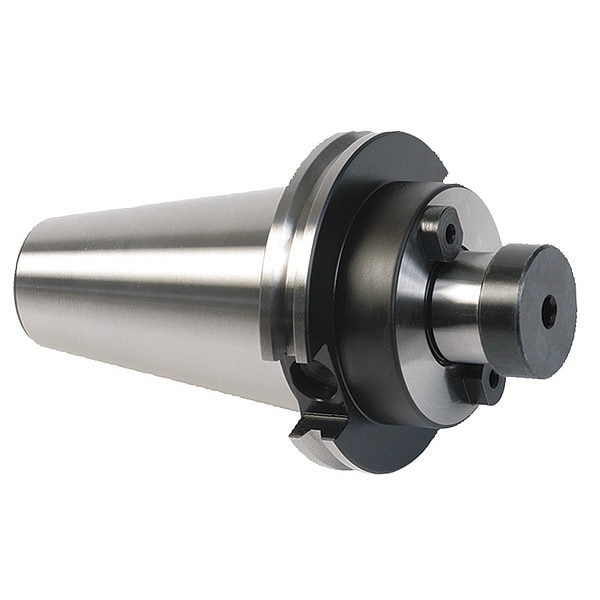

Shell Mill Holder, BT40, Pilot Dia 1.00 In
| Material | Steel |
|---|---|
| Lock Screw Thread Size | 1/2"-20 |
| Body Dia. | 2-1/4 in |
| Taper Size | BT40 |
| Pilot Dia. | 1 in |
| Pilot Length | 0.68 in |
| Projection | 4 in |
| Item | Shell Mill Holder |
| Coolant Fed | Non-Coolant Through |
| Shank Type - Machining | Taper |
| Runout | Less Than or Equal to 0.0002 in |
| Features | 56 to 50 HRC for Long Service Life, ParSymmetry Design for High-Speed Operation, Shiny Taper with Black Oxide Finish for the Best Combination of Accuracy and Durability |
| Material - Machining | High Speed Steel |
| Coolant Supply | Coolant Through |
| Lock Screw Size | 1/2 in |
| T.I.R. Tolerance | 0 in |
| Product Type | Shell Mill Holder |
| Includes Cap Screw | Cap Screw Included |
| Includes Lock Screw | Lock Screw Included |
| Contact Type | Single Contact |
| Package Quantity | 1 |
