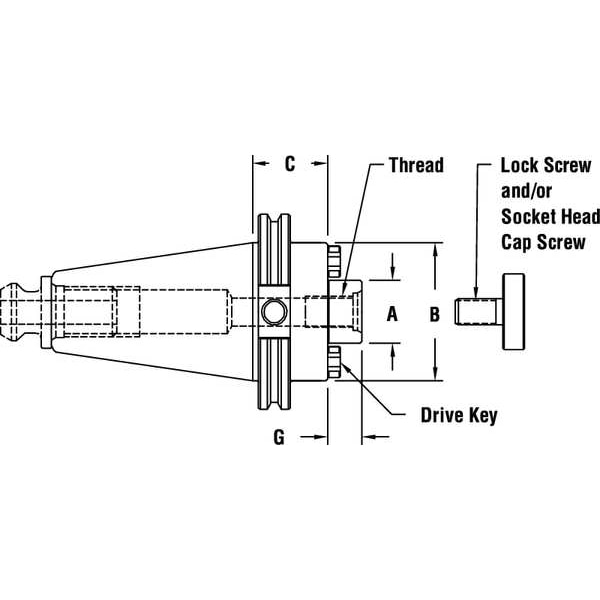

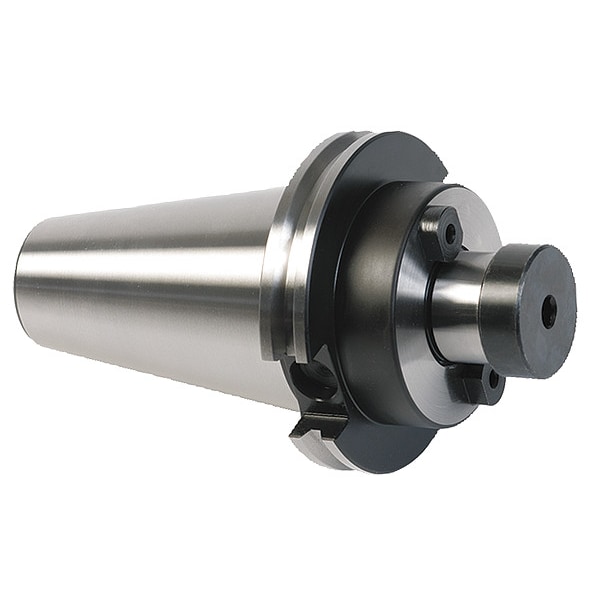

Shell Mill Holder, CAT40, Pilot Dia 1.5 In
| Material | Steel |
|---|---|
| Pilot Length | 0.94 in |
| For Use With | C40B-15SM2 Flange Coolant |
| Projection | 2.4 in |
| Body Dia. | 3-3/4 in |
| Item | Face Mill Holder |
| Pilot Dia. | 1-1/2 in |
| Lock Screw Thread Size | 3/4"-16 |
| Taper Size | CAT40 |
| Coolant Fed | Non-Coolant Through |
| Features | 56 to 50 HRC for Long Service Life, ParSymmetry Design for High-Speed Operation, Shiny Taper with Black Oxide Finish for the Best Combination of Accuracy and Durability |
| Shank Type - Machining | Taper |
| Material - Machining | High Speed Steel |
| Runout | Less Than or Equal to 0.0002 in |
| Compatible Drive Key Model Number | 15KY |
| Includes Cap Screw | Cap Screw Not Included |
| Coolant Supply | Coolant Through |
| Includes Lock Screw | Lock Screw Included |
| Speed - Maximum | Not Applicable |
| Lock Screw Size | 3/4 in |
| Body Diameter | 3-3/4 in |
| Pilot Diameter | 1-1/2 in |
| Head Diameter | 3-3/4 in |
| Contact Type | Single Contact |
| T.I.R. Tolerance | 0 in |
| Product Type | Shell Mill Holder |
| Compatible Lock Screw Model Number | 15LS |
| Measurement System | Inch |
| Package Quantity | 1 |
