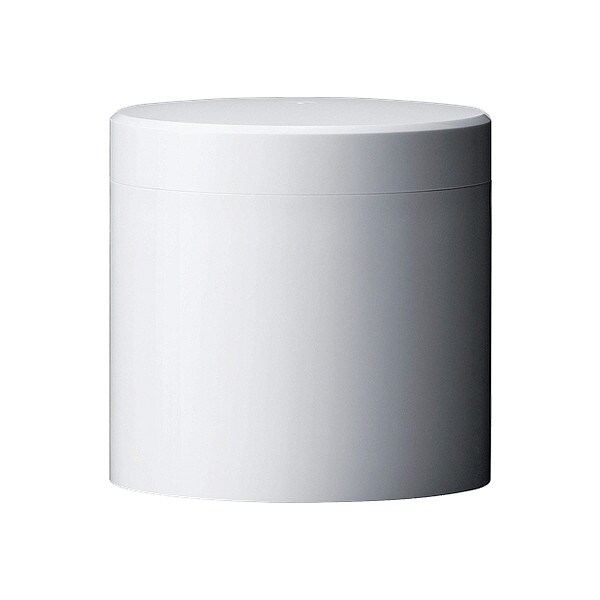

Tower Base Unit, 100mm Dia, 100 to 240V AC
| Item | Tower Base Unit |
|---|---|
| Standards | UL508, CSA-C22.2 No.14 (File No.E215660)EN61000-6-4, EN61000-6-2,EN IEC 63000,EN60947-5-1,EN62471FCC Part15 SubpartB ClassAICES-003 Class A |
| Voltage | 100 to 240V AC |
| Diameter | 100 mm |
| Housing Material | Polycarbonate |
| Includes | Cable |
| Height | 100 mm |
| For Use With | LR10 Signal Towers |
| Rating | IP66, IP69K |
| Width | Not Applicable |
| Body Color | Off-White |
| Operating Temp. | -20 to 50 deg C |
| Tower Light Mounting Style | Direct |
| Tower Light Series | LR10 |
| IP Rating | IP6X,IPX6(IEC 60529),IPX9K(ISO 20653)/TYPE 4X,13(NEMA, UL50E) |
| Overall Diameter | 3-15/16 in |
| Product Type | Tower Light Base |
| Overall Width | Not Applicable |
| Overall Height | 3-15/16 in |
| Compatible Series | LR10 |
| Connection Type | Cabtyre Cord |
| Overall Length | Not Applicable |
| Housing Color | Off White |
| Operating Voltage | 100 - 240V AC |
| Country of Origin (subject to change) | Japan |
| Package Quantity | 1 |
