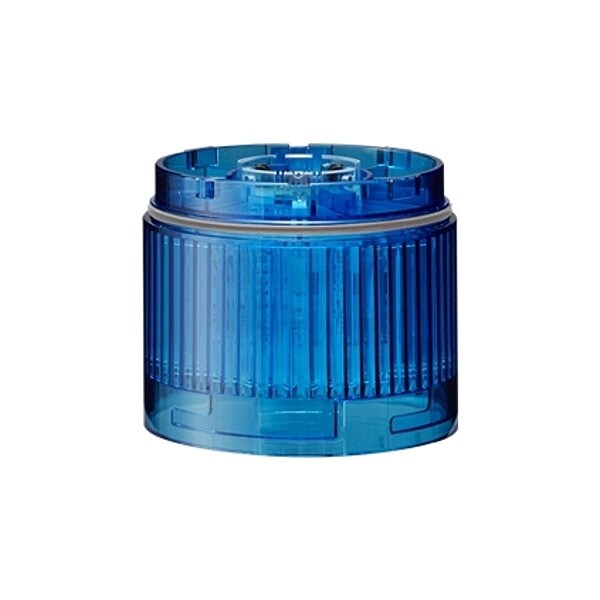

Tower LED Unit, 60 mm Dia.
| Item | Tower Light Module |
|---|---|
| Standards | CSA C22.2 No. 14, EMC Directive (EN 61000-6-4, EN 61000-6-2), RoHS Directive (EN 50581), UL 508 |
| Voltage | 24V DC |
| Diameter | 60 mm |
| Housing Material | Polycarbonate |
| Lighting Technology | LED |
| Includes | None |
| Height | 40 mm |
| Flashes per Minute | Not Applicable |
| Lens Material | Polycarbonate |
| For Use With | LR6 Signal Towers |
| Tower Light Color | Blue |
| Lens Design | Lock, Twist |
| Width | Not Applicable |
| Tower Light Series | LR6+FB295 |
| NEMA Rating | NEMA 13, NEMA 4X |
| Light Output | 2,000mcd |
| Operating Temp. | -20 to 50 deg C |
| Lens Shape | Cylinder |
| For Hazardous Location | Not Applicable |
| Overall Diameter | 60 mm |
| Operating Temperature - Minimum | -20 deg C |
| IP Rating | IP69K |
| Operating Temperature - Maximum | 50 deg C |
| Light Intensity | 2,000 mcd |
| Light Operating Mode | Steady |
| For Location | Indoor |
| Operating Current | Max. 0.045A@24V DC, Typ. 0.04A@24V DC |
| Light Color | Blue |
| Light Source | LED |
| Overall Length | Not Applicable |
| Overall Height | 40 mm |
| Overall Width | Not Applicable |
| Compatible Series | LR6 |
| Operating Voltage | 24V DC |
| Country of Origin (subject to change) | Indonesia |
| Package Quantity | 1 |
