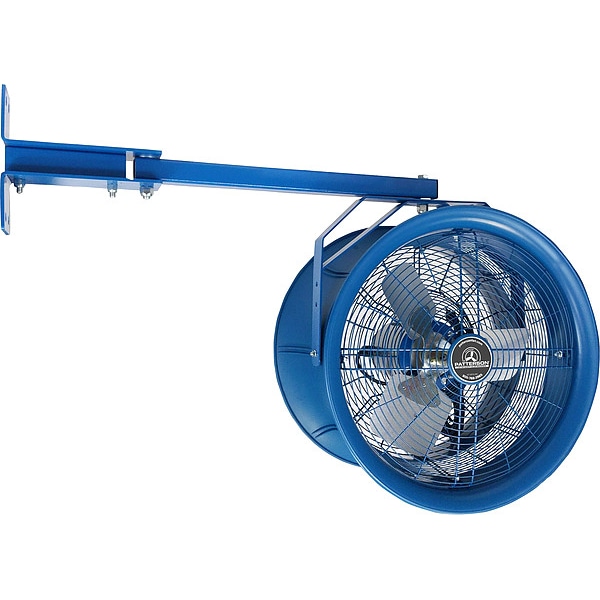

Dock Fan, Wall Mount, 18 in Blade Dia, 115/208 to 230V, 3,800 cfm, Non-Oscillating
| Blade Diameter | 18 in |
|---|---|
| Oscillation | Non-Oscillating |
| Number of Speeds | 1 |
| Voltage | 115/208 to 230V |
| Phase | 1 |
| Motor HP | 0.5 HP |
| Air Flow | 3,800 cfm |
| Drive Type | Direct Drive |
| Blade Material | Aluminum |
| Fan Power Source | Plug In |
| Sound Level | 76 dBA |
| Item | Dock Fan |
| Motor RPM | 1,725 RPM |
| Fan Accessory Material | Polypropylene |
| Housing Material | Polypropylene |
| RPM | 1725 |
| Bearing Type | Ball |
| Length | 24 in |
| NEMA Plug Configuration | 5-15p |
| Max. Depth | 16 in |
| Wire Guard Finish | Powder Coated |
| Fan Mounting Location | Wall |
| Assembled | No |
| Color | Gray, Blue |
| Motor Type | Continuous Duty |
| Air Velocity @ 10 Ft. | 925 fpm |
| Air Velocity @ 80 Ft. | 175 fpm |
| Thermal Protection | Automatic Reset |
| Air Velocity @ 20 Ft. | 475 fpm |
| Amps | 6.0/3.0-2.9 |
| Motor Insulation | Class F |
| Number of Blades | 3 |
| Motor Enclosure | Totally Enclosed Air Over |
| Number of Conductors | 3 |
| Shaft Dia. | 5/8 in |
| Guard Material | Steel |
| Includes | Dock Door Arm |
| Width | 24 in |
| Hz | 60 |
| Standards | OSHA Compliant Fan Guards |
| Environmental Applications | Industrial, Commercial, Sports, Agricultural |
| Material | Polypropylene |
| Air Velocity @ 40 Ft. | 350 fpm |
| Air Velocity @ 60 Ft. | 250 fpm |
| Height | 25-1/2 in |
| Mobile/Stationary | Stationary |
| Max. Ambient Temp. | 104 deg F |
| Fan Accessory Finish | Matte |
| Fan Housing Material | Polypropylene |
| Max. Mounting Height | 10 to 40 ft |
| Wheel Material | Not Applicable |
| Wheel Dia. | Not Applicable |
| Wheeled Base | Stationary |
| Depth | 16 in |
| Fan Blade Color | Gray |
| Head Tilt Adjustment | 33 deg |
| Battery Operated - Fans | No |
| Assembly Required | Yes |
| Motor Design | Permanent Split Capacitor |
| Fan Cord Length | 12 ft |
| Housing Finish - Fans | Matte |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
