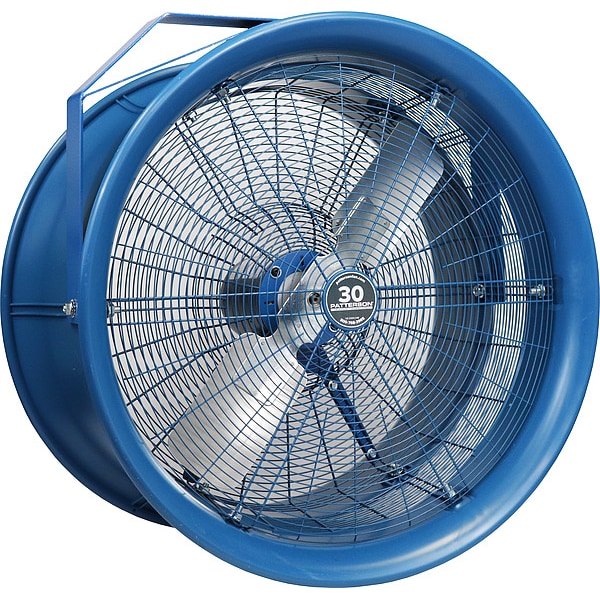

High Velocity Industrial Fan, Ceiling, Column, Floor, Wall Mount, 30 in Blade Dia, 277V, 12,000 cfm
| Blade Diameter | 30 in |
|---|---|
| Oscillation | Non-Oscillating |
| Number of Speeds | 1 |
| Voltage | 277V |
| Phase | 1 |
| Motor HP | 1 HP |
| Air Flow | 12,000 cfm |
| Drive Type | Direct Drive |
| Blade Material | Aluminum |
| Fan Power Source | Hardwired |
| Sound Level | 82.2 dBA @ 20 ft; 85.5 dBA @ 3 ft |
| Item | High Velocity Industrial Fan |
| Standards | OSHA Compliant Guards |
| Width | 37 in |
| Number of Blades | 2 |
| Height | 38-1/8 in |
| Motor Type | Continuous Duty |
| Max. Ambient Temp. | 104 deg F |
| For Use With | Chain Ceiling Mount, Floor Mount, Column and Wall Mount |
| Includes | Fan Head, OSHA Guards, Yoke Mount |
| Color | Blue, Silver |
| Motor Enclosure | Totally Enclosed Air Over |
| Motor RPM | 1,800/1,200 RPM |
| Max. Depth | 22 in |
| Fan Mounting Location | Wall, Ceiling, Floor, Column |
| Thermal Protection | Automatic Reset |
| Amps | 5.6 A @ 277 V |
| Air Velocity @ 60 Ft. | 400 fpm |
| Air Velocity @ 80 Ft. | 350 fpm |
| Air Velocity @ 20 Ft. | 850 fpm |
| Housing Material | Polypropylene |
| RPM | 1800/1200 RPM |
| Air Velocity @ 10 Ft. | 1,650 fpm |
| Wire Guard Finish | Powder Coated |
| Motor Insulation | Class F |
| Guard Material | Steel |
| Bearing Type | Ball |
| Features | Long Air Throw |
| Air Velocity @ 40 Ft. | 550 fpm |
| Battery Operated - Fans | No |
| Fan Cord Length | Not Applicable |
| Fan Housing Material | Polypropylene |
| Head Tilt Adjustment | 15 deg |
| Fan Blade Finish | Mill |
| Depth | 22 in |
| Max. Mounting Height | Unrestricted |
| Housing Finish - Fans | Matte |
| Fan Blade Color | Silver |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
