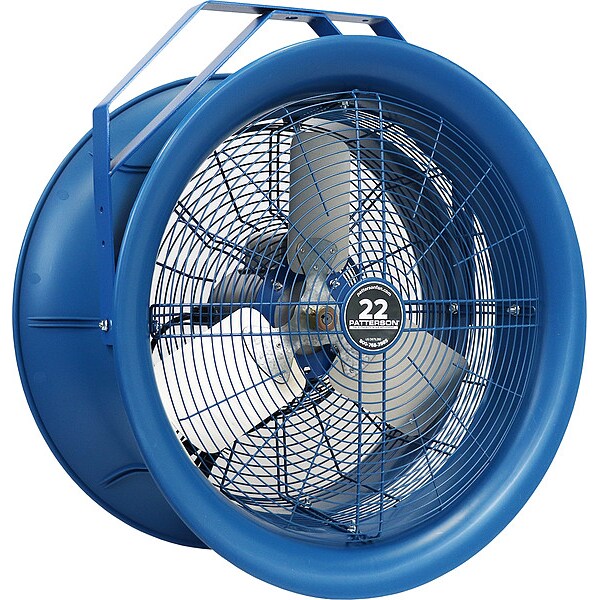

High Velocity Industrial Fan, Ceiling Mount, 22 in Blade Dia, 208 to 230/460V, 5,570 cfm
| Blade Diameter | 22 in |
|---|---|
| Oscillation | Non-Oscillating |
| Number of Speeds | 1 |
| Voltage | 208 to 230/460V |
| Phase | 3 |
| Motor HP | 0.5 HP |
| Air Flow | 5,570 cfm |
| Drive Type | Direct Drive |
| Blade Material | Aluminum |
| Fan Power Source | Hardwired |
| Sound Level | 77 dBA |
| Item | High Velocity Industrial Fan |
| Number of Conductors | 3 |
| Amps | 2.4-2.3/1.2 |
| Wire Guard Finish | Powder Coated |
| Air Velocity @ 10 Ft. | 1,200 fpm |
| Environmental Applications | Industrial, Commercial, Sports, Agricultural |
| Mobile/Stationary | Stationary |
| Air Velocity @ 60 Ft. | 375 fpm |
| Air Velocity @ 80 Ft. | 200 fpm |
| Motor Type | Continuous Duty |
| RPM | 1725 |
| Hz | 60 |
| Max. Depth | 16 in |
| NEMA Plug Configuration | Not Applicable |
| Fan Mounting Location | Ceiling |
| Standards | OSHA Compliant Fan Guards |
| Height | 32-1/8 in |
| Motor RPM | 1,725 RPM |
| Fan Accessory Material | Polypropylene |
| Motor Enclosure | Totally Enclosed Air Over |
| Color | Gray, Blue |
| Material | Polypropylene |
| Guard Material | Steel |
| Number of Blades | 3 |
| Assembled | No |
| Air Velocity @ 20 Ft. | 625 fpm |
| Bearing Type | Ball |
| Housing Material | Polypropylene |
| Shaft Dia. | 5/8 in |
| Thermal Protection | Automatic Reset |
| Length | 29 in |
| Width | 29 in |
| Fan Accessory Finish | Matte |
| Motor Insulation | Class F |
| Includes | Mounting Yoke |
| Air Velocity @ 40 Ft. | 450 fpm |
| Max. Ambient Temp. | 104 deg F |
| Wheeled Base | Stationary |
| Fan Blade Color | Gray |
| Fan Housing Material | Polypropylene |
| Head Tilt Adjustment | 19 deg |
| Depth | 16 in |
| Housing Finish - Fans | Matte |
| Max. Mounting Height | 10 to 40 ft |
| Fan Cord Length | Not Applicable |
| Wheel Material | Not Applicable |
| Battery Operated - Fans | No |
| Wheel Dia. | Not Applicable |
| Assembly Required | Yes |
| Motor Design | Permanent Split Capacitor |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
