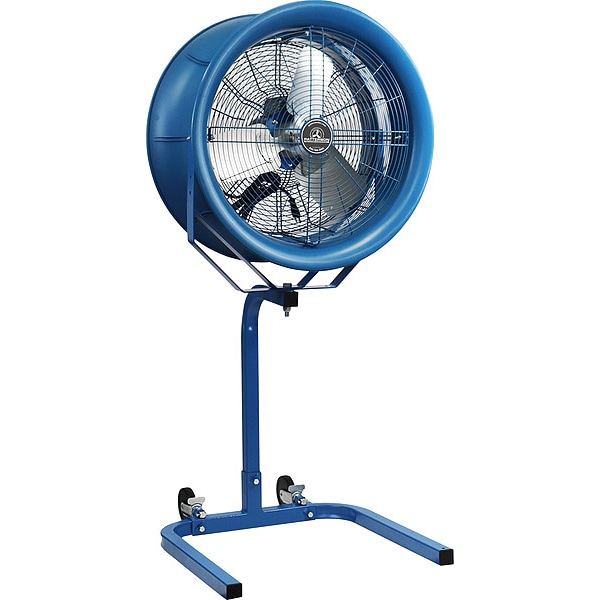

High Velocity Industrial Fan, Pedestal Mount, 26 in Blade Dia, 208 to 230/460V, 7,650 cfm
| Blade Diameter | 26 in |
|---|---|
| Oscillation | Non-Oscillating |
| Number of Speeds | 1 |
| Voltage | 208 to 230/460V |
| Phase | 3 |
| Motor HP | 1 HP |
| Air Flow | 7,650 cfm |
| Drive Type | Direct Drive |
| Blade Material | Aluminum |
| Fan Power Source | Hardwired |
| Sound Level | 85 dBA |
| Item | High Velocity Industrial Fan |
| Motor Enclosure | Totally Enclosed Air Over |
| Housing Material | Steel |
| NEMA Plug Configuration | Not Applicable |
| Max. Ambient Temp. | 104 deg F |
| RPM | 1800 |
| Includes | Mounting Yoke |
| Base Dia. | 35 in |
| Max. Depth | 18-1/2 in |
| Number of Blades | 3 |
| Assembled | No |
| Fan Accessory Finish | Powder Coated |
| Air Velocity @ 60 Ft. | 390 fpm |
| Motor Insulation | Class B3 |
| Environmental Applications | Industrial, Commercial, Sports, Agricultural |
| Material | Steel |
| Fan Accessory Material | Steel |
| Air Velocity @ 80 Ft. | 275 fpm |
| Length | 33 in |
| Height | 35-3/8 in |
| Amps | 3.6-3.5/1.8 |
| Color | Gray, Blue |
| Shaft Dia. | 7/8 in |
| Thermal Protection | Automatic Reset |
| Hz | 60 |
| Motor Type | Continuous Duty |
| Standards | OSHA Compliant Fan Guards |
| Air Velocity @ 20 Ft. | 750 fpm |
| Bearing Type | Ball |
| Motor RPM | 1,800 RPM |
| Number of Conductors | 3 |
| Air Velocity @ 40 Ft. | 500 fpm |
| Air Velocity @ 10 Ft. | 1,400 fpm |
| Wire Guard Finish | Powder Coated |
| Fan Mounting Location | Pedestal |
| Width | 33 in |
| Mobile/Stationary | Mobile |
| Guard Material | Steel |
| Wheel Dia. | 5 in |
| Motor Design | Permanent Split Capacitor |
| Assembly Required | Yes |
| Max. Mounting Height | 10 to 40 ft |
| Fan Cord Length | Not Applicable |
| Battery Operated - Fans | No |
| Head Tilt Adjustment | 18 deg |
| Housing Finish - Fans | Powder Coated |
| Fan Housing Material | Steel |
| Depth | 18-1/2 in |
| Fan Blade Color | Gray |
| Wheel Material | Plastic |
| Wheeled Base | Mobile |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
