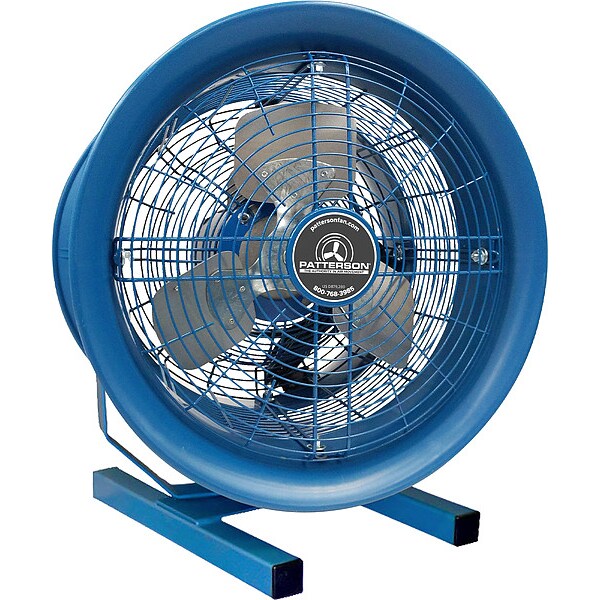

High Velocity Industrial Fan, Pedestal Mount, 34 in Blade Dia, 208 to 230/460V, 17,000 cfm
| Blade Diameter | 34 in |
|---|---|
| Oscillation | Non-Oscillating |
| Number of Speeds | 1 |
| Voltage | 208 to 230/460V |
| Phase | 3 |
| Motor HP | 3 HP |
| Air Flow | 17,000 cfm |
| Drive Type | Direct Drive |
| Blade Material | Aluminum |
| Fan Power Source | Hardwired |
| Sound Level | 82 dBA |
| Item | High Velocity Industrial Fan |
| Motor Enclosure | Totally Enclosed Air Over |
| Number of Conductors | 3 |
| Fan Accessory Material | Steel |
| Wire Guard Finish | Powder Coated |
| Material | Steel |
| Height | 49-1/2 in |
| Standards | OSHA Compliant Fan Guards |
| Max. Ambient Temp. | 104 deg F |
| Motor Type | Continuous Duty |
| Includes | Mounting Yoke |
| Air Velocity @ 60 Ft. | 600 fpm |
| Length | 43-1/2 in |
| Assembled | No |
| Amps | 9.9-9.2/ 4.6 |
| Motor RPM | 1,200 RPM |
| Housing Material | Steel |
| NEMA Plug Configuration | Not Applicable |
| Air Velocity @ 20 Ft. | 1,000 fpm |
| Hz | 60 |
| Guard Material | Steel |
| Mobile/Stationary | Mobile |
| Number of Blades | 3 |
| RPM | 1200 |
| Bearing Type | Ball |
| Thermal Protection | Automatic Reset |
| Air Velocity @ 80 Ft. | 500 fpm |
| Air Velocity @ 10 Ft. | 1,950 fpm |
| Shaft Dia. | 1-3/8 in |
| Color | Gray, Blue |
| Base Dia. | 41-1/2 in |
| Air Velocity @ 40 Ft. | 700 fpm |
| Motor Insulation | Class F |
| Fan Accessory Finish | Powder Coated |
| Environmental Applications | Industrial, Commercial, Sports, Agricultural |
| Width | 43-1/2 in |
| Max. Depth | 25-1/2 in |
| Fan Mounting Location | Pedestal |
| Head Tilt Adjustment | 15 deg |
| Wheeled Base | Mobile |
| Fan Housing Material | Steel |
| Assembly Required | Yes |
| Housing Finish - Fans | Powder Coated |
| Depth | 25-1/2 in |
| Fan Cord Length | Not Applicable |
| Motor Design | Permanent Split Capacitor |
| Battery Operated - Fans | No |
| Fan Blade Color | Gray |
| Max. Mounting Height | 10 to 40 ft |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
