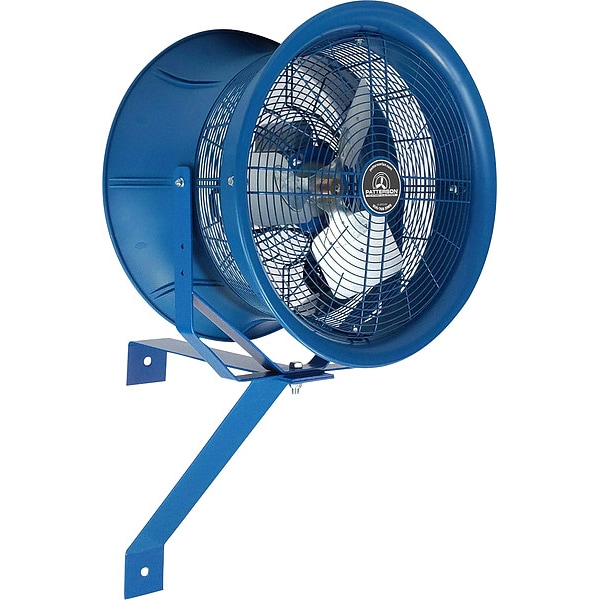

High Velocity Industrial Fan, Post, Wall Mount, 10 in Blade Dia, 115V, 2,470 cfm, Non-Oscillating
| Blade Diameter | 10 in |
|---|---|
| Oscillation | Non-Oscillating |
| Number of Speeds | 1 |
| Voltage | 115V |
| Phase | 1 |
| Motor HP | 0.125 HP |
| Air Flow | 2,470 cfm |
| Drive Type | Direct Drive |
| Blade Material | Polypropylene |
| Fan Power Source | Plug In |
| Sound Level | 56 dBA |
| Item | High Velocity Industrial Fan |
| Fan Accessory Material | Polypropylene |
| Bearing Type | Ball |
| Air Velocity @ 20 Ft. | 320 fpm |
| Color | Gray, Blue |
| Motor Enclosure | Totally Enclosed Air Over |
| Length | 15-5/8 in |
| Motor RPM | 1,550 RPM |
| RPM | 1550 |
| Amps | 0.8 |
| Height | 12 in |
| Max. Ambient Temp. | 104 deg F |
| NEMA Plug Configuration | 5-15p |
| Width | 15-5/8 in |
| Fan Mounting Location | Wall, Post |
| Guard Material | Polypropylene |
| Number of Blades | 3 |
| Environmental Applications | Industrial, Commercial, Sports, Agricultural |
| Max. Depth | 13 in |
| Motor Insulation | Class F |
| Standards | OSHA Compliant Fan Guards |
| Thermal Protection | Automatic Reset |
| Motor Type | Continuous Duty |
| Shaft Dia. | 1/2 in |
| Fan Accessory Finish | Matte |
| Assembled | No |
| Housing Material | Polypropylene |
| Wire Guard Finish | Matte |
| Number of Conductors | 3 |
| Hz | 60 |
| Material | Polypropylene |
| Air Velocity @ 10 Ft. | 525 fpm |
| Includes | Mounting Yoke |
| Mobile/Stationary | Stationary |
| Max. Mounting Height | 10 to 20 ft |
| Fan Blade Color | Blue |
| Fan Cord Length | 12 ft |
| Wheeled Base | Stationary |
| Wheel Material | Not Applicable |
| Housing Finish - Fans | Matte |
| Fan Housing Material | Polypropylene |
| Wheel Dia. | Not Applicable |
| Depth | 13 in |
| Assembly Required | Yes |
| Motor Design | Shaded Pole |
| Head Tilt Adjustment | 18 deg |
| Battery Operated - Fans | No |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
