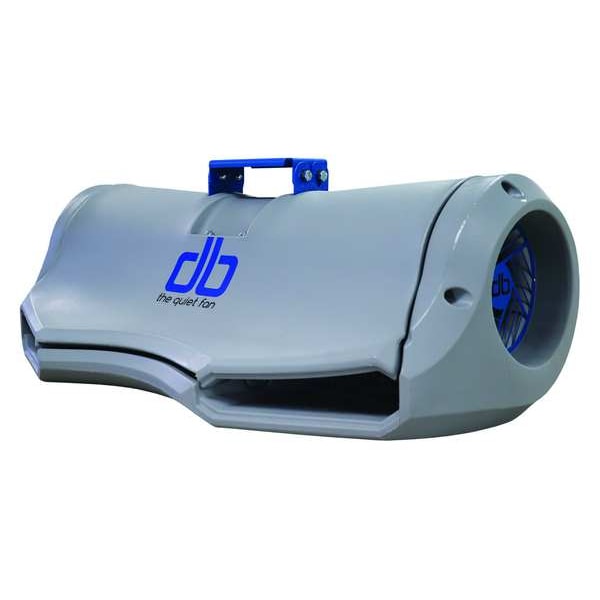

Standard Duty Industrial Fan, Ceiling Mount, 120/208-230V, 3,075 cfm, Non-Oscillating
| Oscillation | Non-Oscillating |
|---|---|
| Number of Speeds | 1 |
| Voltage | 120/208-230V |
| Phase | 1 |
| Motor HP | 0.5 HP |
| Air Flow | 3,075 cfm |
| Fan Power Source | Hardwired |
| Sound Level | 60 dBA |
| Item | Industrial Fan |
| Depth | 18-5/16 in |
| Height | 12-1/8 in |
| Width | 35 in |
| Fan Housing Material | Polypropylene |
| Thermal Protection | Automatic Reset |
| Application | Air Circulation |
| Air Velocity @ 40 Ft. | 418 fpm |
| Motor RPM | 1,725 RPM |
| Bearing Type | Permanently Lubricated Ball |
| Wheel Material | Steel |
| Fan Style | Standard Duty |
| Motor Design | Capacitor-Start, Run |
| Length | 35 in |
| Max. Ambient Temp. | 104 deg F |
| Watts | 375 W |
| Motor Enclosure | Totally Enclosed Non Ventilated |
| Assembly Required | No |
| Amps | 4.2/1.9 |
| RPM | 1725 |
| Hz | 60 |
| Air Velocity @ 20 Ft. | 600 fpm |
| Wheel Dia. | 6 in |
| Assembled | Yes |
| Fan Cord Length | 12 ft |
| Housing Material | Polypropylene |
| Environmental Applications | Industrial |
| Motor Insulation | Class B |
| NEMA Plug Configuration | Hardwired |
| Max. Depth | 18-5/16 in |
| Fan Mounting Location | Ceiling |
| Air Velocity @ 10 Ft. | 927 fpm |
| Includes | Mounting Bracket |
| Color | Gray |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
