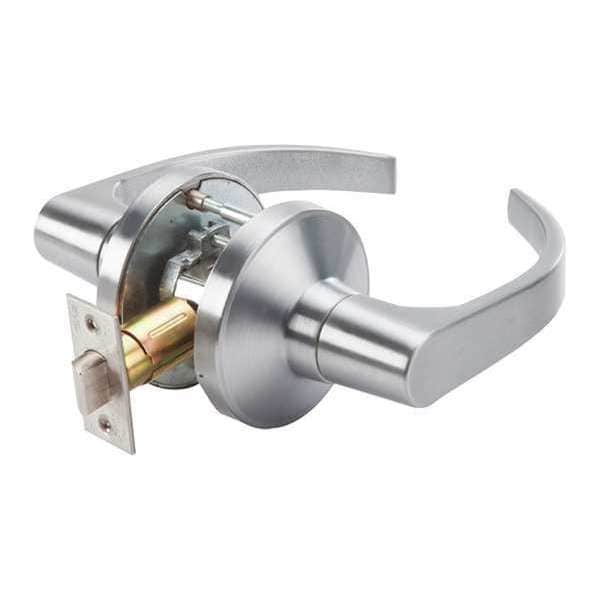

Door Lever Lockset, BSN Curved Style
| Backset | 2 3/4 in |
|---|---|
| Electrical/Mechanical | Mechanical |
| For Use With | Metal or Wood Doors |
| Key Type | Not Keyed |
| Keyway Type | Schlage C |
| Location Type | Commercial |
| Lockset Function | Passage |
| Lockset Grade | 2 |
| Lockset Handle Type | Lever |
| Mortise/Cylindrical | Cylindrical |
| Number of Pins | 0 |
| Required Door Thickness | 1-3/8 in to 1-3/4 in |
| Series | GP |
| Style | BSN Curved |
| Lockset Fire Rating | 3 hr |
| Ligature Resistant | No |
| Voltage | Not Applicable |
| Number of Keys | 2 |
| Mortise / Cylindrical | Cylindrical |
| Cylinder Core Type | Not Applicable |
| Strike Dim. | 4-7/8 in x 1-1/4 in |
| Lockset Performance Strength | Medium Duty |
| Features | 1,500 lbf-in Lever Torque Resistance, 13 ga Steel Anti-Rotation Plate |
| ADA Compliant | Yes |
| Lockset Finish | Satin Stainless Steel |
| Handle Material | Zinc |
| Item | Door Lockset |
| Strike Type | ASA |
| Standards | ANSI/BHMA 156.2, Grade 2, ICC/ANSI 117.1 |
| Key Material | Not Applicable |
| Visual Indicator Message | No Message |
| Application | Educational, Government, Institutional, Hospitals, Churches, Industrial, Multiple Family Residential, Office |
| Door Thickness - Maximum | 1-3/4 in |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Strike Plate Width | 1-1/4 in |
| Latch Bolt/Dead Bolt | Latch Bolt |
| Lockset Style | Boston Lever |
| Knob/Handle Material | Zinc |
| Ligature-Resistant | Not Ligature-Resistant |
| Fire Rating | 3 hr |
| Visual Indicator Location | Not Applicable |
| Door Thickness - Minimum | 1-3/8 in |
| ANSI Grade | 2 |
| Lockset Function ANSI Code | F75 |
| Lockset Type | Mechanical |
| Hand Orientation | Non-Handed |
| Strike Plate Height | 4-7/8 in |
| Locking/Unlocking Access - Inside | Not Lockable |
| Locking/Unlocking Access - Outside | Not Lockable |
| UL Fire Rating | UL10C |
| Performance Grade | 1 |
| Includes Core | Not Applicable |
| Trim Plate Shape | Round |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
