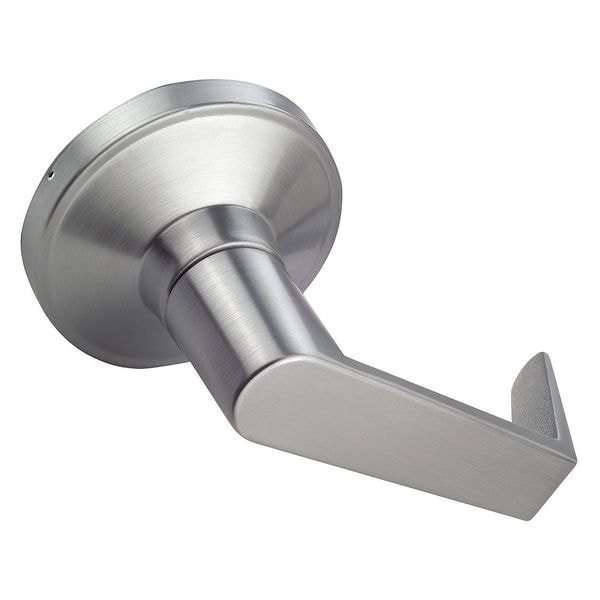

Dummy Trim, Series 6200, Silver
| Series | 6200 |
|---|---|
| For Door Thickness | 1 3/4 in |
| Door Handing | Non-Handed |
| Finish | Satin Chrome |
| Fire Rated | No |
| Grade | 1 |
| Item | Mechanical Exit Device Trim |
| Color | Silver |
| Application | Entrance Trim On Exit Device |
| Overall Length | 10-3/4 in |
| Overall Width | 2-3/4 in |
| ADA Compliant | Yes |
| Standards | ICC/ANSI 117.1 |
| Outside Trim Type | Lever |
| Performance | Heavy Duty |
| Features | Fits Into Standard 161 Prepped Doors with Through Bolts |
| Visual Indicator Message | No Message |
| Product Type | Mechanical Exit Device Trim |
| Door Thickness - Minimum | 1-3/4 in |
| Lockset Function ANSI Code | F86 |
| Ligature-Resistant | Not Ligature-Resistant |
| Length - Maximum | 10-3/4 in |
| Door Height - Maximum | Not Applicable |
| Compatible Series | 6,300 |
| Hand Orientation | Non-Handed |
| Door Thickness - Maximum | 1-3/4 in |
| Exit Device Style | Pull, Entrance |
| Visual Indicator Location | Not Applicable |
| Length - Minimum | Not Applicable |
| Door Width - Maximum | Not Applicable |
| Performance Grade | 1 |
| ANSI Grade | 1 |
| Fire Rating | Not Applicable |
| For Use with Exit Device | Entrance, Rim, Vertical Rod |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Door Width - Minimum | Not Applicable |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
