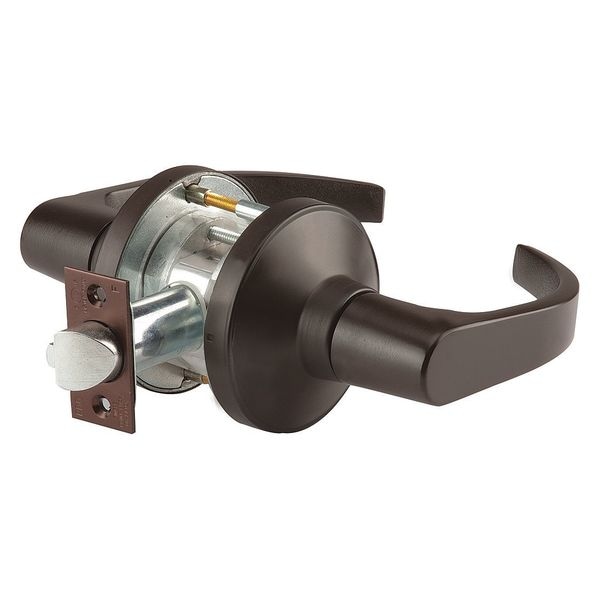

Lever Lockset, Mechanical, GT Curved
| Electrical/Mechanical | Mechanical |
|---|---|
| Lockset Handle Type | Lever |
| Mortise / Cylindrical | Cylindrical |
| Lockset Function | Entrance |
| Lockset Grade | Grade 1 |
| Style | Boston |
| Required Door Thickness | 1-3/4 in to 2-1/4 in |
| Lockset Finish | Oil Rubbed Bronze |
| Keyway Type | Schlage C |
| Key Type | Keyed Different |
| Handle Material | Zinc |
| Number of Pins | 6 |
| For Use With | Wood, Steel Doors |
| Strike Dim. | 1-1/4 in x 4-7/8 in |
| Number of Keys | 2 |
| Location Type | Commercial |
| Strike Type | ASA |
| Lockset Performance Strength | Heavy Duty |
| ADA Compliant | Yes |
| Lockset Fire Rating | 3 hr |
| Item | Door Lockset |
| Cylinder Core Type | Conventional Core Cylinder |
| Backset | 2-3/4 in |
| Mortise/Cylindrical | Cylindrical |
| Standards | ANSI/BHMA A156.2, California Education Code Compliant (Functions GT135, GT135LED, GT145), FF-H-10C (Superseded by A156.2), HVHZ, ICC/ANSI 117.1, PDQ Product Approval: FL 21376 |
| Series | GT Curved |
| Ligature Resistant | No |
| Key Material | Nickel Silver |
| Features | 13 ga Steel Anti-Rotation Plate, 2,200 lbf-in Lever Torque Resistant |
| Keying | Keyed Different |
| Fire Rated | 3 hr. |
| Finish | Oil Rubbed Bronze |
| Grade | 1 |
| Voltage | Not Applicable |
| Visual Indicator Message | No Message |
| Pins | 6 |
| Function | Entrance |
| Cylinder | Yes |
| Knob/Handle Material | Bronze |
| Performance Grade | 1 |
| Hand Orientation | Non-Handed |
| Application | Commercial |
| Strike Plate Thickness | 1/8 in |
| Door Thickness - Maximum | 2-1/4 in |
| Locking/Unlocking Access - Outside | Keyway |
| Fire Rating | 3 hr |
| Door Thickness - Minimum | 1-3/4 in |
| Latch Bolt/Dead Bolt | Latch Bolt |
| Lockset Function ANSI Code | F109 |
| ANSI/BHMA Finish | Dark Oxidized Satin Bronze, Oil Rubbed |
| Locking/Unlocking Access - Inside | Push Button |
| Visual Indicator Location | Not Applicable |
| Strike Plate Height | 4-7/8 in |
| Ligature-Resistant | Not Ligature-Resistant |
| Lockset Style | Boston |
| Includes Core | Core Included |
| ANSI Grade | 1 |
| Lockset Type | Mechanical |
| Strike Plate Width | 1-1/4 in |
| Trim Plate Shape | Round |
| UL Fire Rating | UL10C |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
