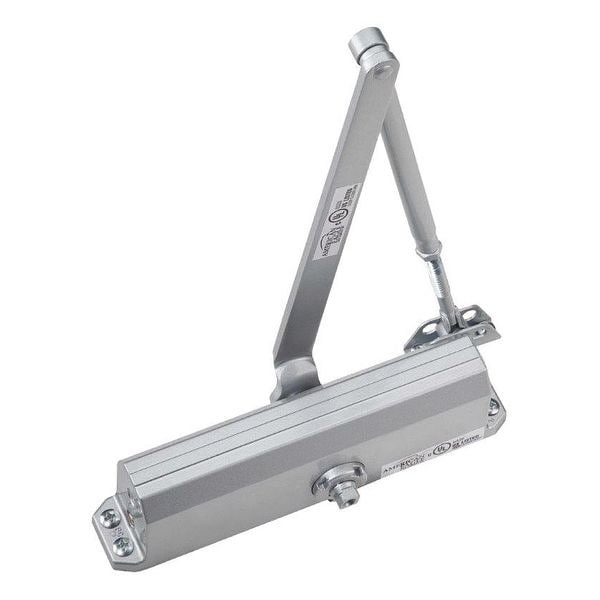

Manual, Hydraulic, Door Closer, Medium Duty Interior and Exterior
| Item | Door Closer |
|---|---|
| Closer Mounting Style | Parallel, Regular, Top Frame |
| Closer Performance | Medium Duty |
| Closer Type | Non Hold Open |
| Finish | Natural |
| Hand Orientation | Non-Handed |
| Housing Depth | 3-1/8 in |
| Housing Height | 3/4 in |
| Housing Length | 9-1/16 in |
| Interior/Exterior | Interior, Exterior |
| Hydraulic/Pneumatic | Hydraulic |
| Automatic/Manual | Manual |
| Material | Cast Iron |
| Mounting Hardware | Included |
| Max. Door Opening | 180 Degrees |
| Standards | UL-10C; ANSI A156.4; Grade 1; UL Listed |
| Spring Size | Adjustable 3 to 6 |
| Arm Material | Cast Iron |
| Exterior Door Width | 48 in |
| Arm Type | Regular |
| Interior Door Width | 48 in |
| Ligature Resistant | No |
| Projection from Wall | 3-1/8 in |
| ADA Compliant | Yes |
| Category Type | Parallel Arm |
| Type | Interior/Exterior Commercial |
| Door Handing | Non-Handed, Reversible |
| Series | 3100 |
| For Use With | Interior and Exterior Doors |
| Product Type | Door Closer |
| Mounting Style | Tri-Packed |
| UL Fire Rating | UL10C |
| Interior/Exterior Use | Interior, Exterior |
| Length Between Mounting Holes | 9-1/16 in |
| Height Between Mounting Holes | 3/4 in |
| Performance Grade | 2 |
| Spring Type | Adjustable |
| Spring Size - Maximum | 6 |
| Projection | 3-1/8 in |
| Exterior Door Width - Maximum | 48 in |
| Spring Size - Minimum | 3 |
| ANSI/BHMA Finish | Unfinished |
| Compatible Brand | LCN |
| Interior Door Width - Maximum | 48 in |
| Door Opening - Maximum | 180 deg |
| Ligature-Resistant | Not Ligature-Resistant |
| Operation Style | Manual |
| Compatible Manufacturer Model Number | Not Applicable |
| Includes Hardware | Hardware Included |
| Closer Cycles | 2,000,000 |
| Compatible Series | 1260 |
| Country of Origin (subject to change) | Korea, Republic of |
| Package Quantity | 1 |
