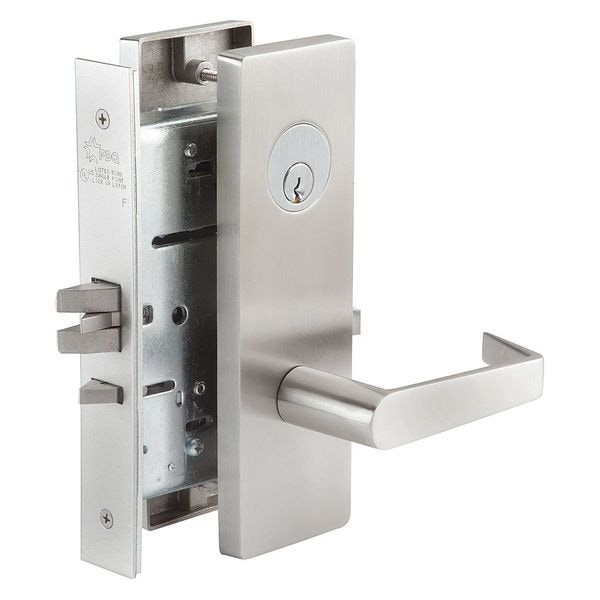

Mortise Lockset, Lever, MR, MR Escutcheon, Store, Mech.
| Electrical/Mechanical | Mechanical |
|---|---|
| Lockset Handle Type | Lever |
| Mortise / Cylindrical | Mortise |
| Lockset Function | Storeroom |
| Lockset Grade | Grade 1 |
| Style | Philadelphia |
| Required Door Thickness | 1-3/4 in |
| Lockset Finish | Satin Stainless Steel |
| Keyway Type | Schlage C |
| Key Type | Keyed Different |
| Standards | ANSI/BHMA 156.13, FL 21376, ICC/ANSI 117.1, UL and cUL Listed 10C |
| Strike Dim. | 1-1/4 in x 4-7/8 in |
| ADA Compliant | Yes |
| Number of Keys | 2 |
| Location Type | Commercial |
| Lockset Performance Strength | Extra Heavy Duty |
| Features | 12 ga Cold Rolled Steel Case |
| Lockset Fire Rating | 3 hr |
| Backset | 2-3/4 in |
| Ligature Resistant | No |
| Mortise/Cylindrical | Mortise |
| Key Material | Nickel Silver |
| Item | Door Lockset |
| Series | MR |
| Strike Type | Curved Lip |
| Includes | Hardware |
| For Use With | Wood and Steel Doors |
| Finish | Satin Stainless Steel |
| Voltage | Not Applicable |
| Function | Storeroom |
| Handle Type | Lever |
| Pins | 6 |
| Grade | 1 |
| Case Material | Steel |
| Fire Rated | 3 hr. |
| Keying | Keyed Different |
| Visual Indicator Message | No Message |
| Cylinder Core Type | Large Format Interchangeable Core Cylinder |
| ANSI Grade | 1 |
| Knob/Handle Material | Stainless Steel |
| Includes Core | Core Included |
| Strike Plate Width | 1-1/4 in |
| Ligature-Resistant | Not Ligature-Resistant |
| Trim Plate Shape | Rectangular |
| Locking/Unlocking Access - Outside | Keyway |
| ANSI/BHMA Finish | Satin Stainless Steel |
| Strike Plate Height | 4-7/8 in |
| Performance Grade | 1 |
| Fire Rating | 3 hr |
| Hand Orientation | Right-Handed |
| UL Fire Rating | UL10C |
| Door Thickness - Maximum | 1-3/4 in |
| Includes Hardware | Hardware Included |
| Locking/Unlocking Access - Inside | Not Lockable |
| Lockset Function ANSI Code | F07 |
| Visual Indicator Location | Not Applicable |
| Door Thickness - Minimum | 1-3/4 in |
| Lockset Type | Mechanical |
| Application | Commercial |
| Lockset Style | Philadelphia |
| Latch Bolt/Dead Bolt | Latch Bolt |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
