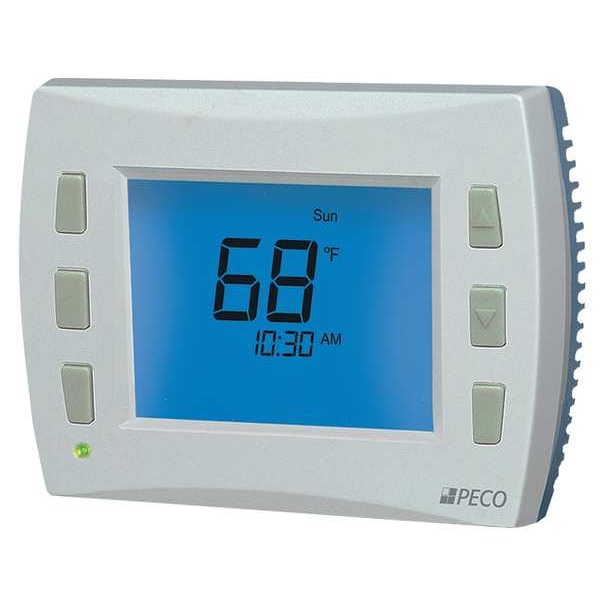

Low Voltage Thermostat, 7, 5-2, 5-1-1 Programs, 3 H, 2 C, Hardwired/Battery/Power Stealing, 24VAC
| Item | Low Voltage Thermostat |
|---|---|
| Voltage | 24VAC |
| Stages Heat | 3 |
| Mounting Type | Horizontal |
| Color | White |
| Control Range | 50 to 90 deg F |
| System Switching | Auto-Heat-Cool-Off-Aux-Setback |
| Stages Cool | 2 |
| Height | 4-5/16 in |
| Width | 5-23/32 in |
| Dual Transformer Compatible | Yes |
| Power Method | Battery, Hardwired Stealing, Power |
| 750mV Compatible | No |
| Programs per Week | 7, 5-2, 5-1-1 |
| Dehumidification Control | Yes |
| Agency Compliance | ASHRAE 90.1-9, California Title 24 |
| WiFi Capability | No |
| Terminal Designations | C, W1(B/O), W2(AUX), G, A, E, Y1, Y2, RH, RC, SC, S1, S2, S3 |
| Temporary Temperature Hold | Yes |
| Temp. Settings per Day | 0, 1, 2, 4 |
| Remote Sensing Capability | Yes |
| Filter Indicator | Yes |
| Display Size | 8 sq in |
| Features | A Secure Digital (SD) Card Capability for Download/Upload Configuration and Program Settings |
| Fan Switching | Auto-on |
| Battery Backup | Yes |
| Automatic Changeover | Yes |
| Temperature Limiting | Yes |
| Display Type | LCD, Backlit |
| For Use With | SB200-001 Occupancy Sensor, SP155-017 INDOOR REMOTE SENSOR, 70327 OUTDOOR REMOTE SENSOR, 70481 SD Card Performance PRO |
| Key Pad Lockout | Yes |
| Programmable Fan | Yes |
| Batteries Included | Yes |
| Humidification Control | Yes |
| Temporary Program Override | Yes |
| Includes | 2 AA Batteries |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Depth | 1-5/16 in |
| Low Battery Indicator | Yes |
| Display Color | Blue |
| Footnotes | 1, 2, 3, 5, 6, 7, 8 |
| Standards | ASHRAE 90.1-9, California Title 24 |
| Mounting | Horizontal |
| Control Type | Push Button |
| Occupancy Sensor | Includes Occupancy Sensor |
| Stages | 3H/2C Conventional, 4H/2C Heat Pump |
| Type | C, HP, Digital Programmable Multi Stage H |
| Screen Width | 2-1/2 in |
| Backlit Screen Color | Blue |
| Differential Type | Fixed |
| Operating Temperature Range | 0 to 120 deg F |
| Compatible System Type | Electric Forced Air Furnaces, Gas Forced Air Furnaces, Heat Pump with Aux, Heat Pump without Aux |
| Thermostat Type | Low Voltage |
| Contact Rating | 20 to 30V AC |
| Number of Zones | 5 |
| Changeover Type | Manual, Automatic |
| Includes Batteries | Yes |
| Digit Size | Easy Read |
| Smart Connectivity | No Connectivity |
| Temperature Readout | Yes |
| Maximum Operating Humidity | 99 % |
| Includes Positive Off | Yes |
| Housing Color | White |
| Temperature settings per day | 0, 1, 2, 4 |
| Maximum Operating Temperature | 120 deg F |
| Application | Cool, Heat |
| Overall Depth | 1-5/16 in |
| Programming Capability | 5-1-1, 5-2, 7 Day |
| Maximum Control Temperature | 90 deg F |
| Shape | Rectangle |
| Overall Width | 5-11/16 in |
| Mounting Direction/Shape | Horizontal |
| Frequency | 50 Hz, 60 Hz |
| Number of Heating Stages - Heat Pump System | 4 |
| Screen Height | 3-1/4 in |
| Millivolt Compatible | No |
| Battery Type | AA Batteries |
| Temperature Control Range | 50 to 90 deg F |
| Fan Settings | Auto-On |
| Temperature Scale | Fahrenheit, Celsius |
| Electrical Connection Type | Hardwired |
| Operating Humidity Range | 25% to 99% RH |
| System/Fan Settings | Auto-On, Auto-Cool-Emergency Heat-Heat-Off |
| Number of Cooling Stages - Conventional System | 2 |
| Backlit Screen | Yes |
| Mounting Direction | Horizontal |
| Temperature Differential | 1 Degrees F |
| Minimum Control Temperature | 50 deg F |
| Application/Stages | Heat and Cool; 3H/2C Conventional, 4H/2C Heat Pump |
| Number of Heating Stages - Conventional System | 3 |
| Filter Change Reminder | Yes |
| Sensor Location | Remote |
| Overall Height | 4-5/16 in |
| External Power Source | Furnace |
| System Settings | Auto-Cool-Emergency Heat-Heat-Off |
| Number of Cooling Stages - Heat Pump System | 2 |
| Occupancy Sensor Compatibility | 2NCC2, 2NCC8 |
| Minimum Operating Humidity | 25 % |
| Minimum Operating Temperature | 0 deg F |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
