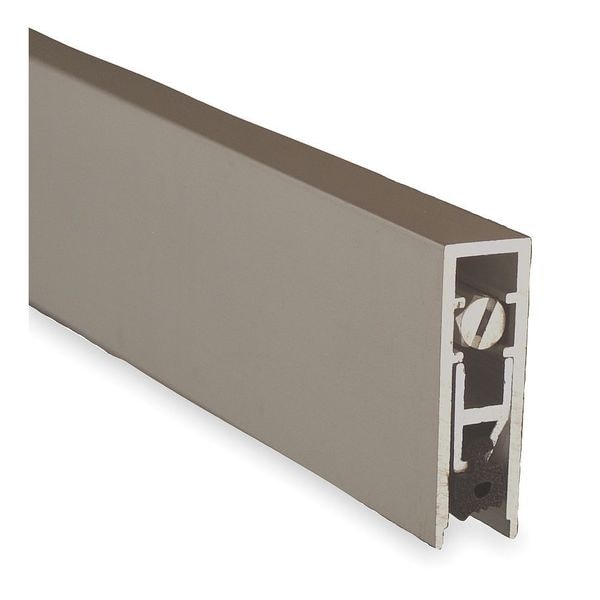

Automatic Door Bottom, 3/8x36 In, Aluminum
| Length | 36 in |
|---|---|
| Color | Clear |
| Width | 3/8 in |
| Material | Anodized Aluminum and Sponge EPDM |
| Flange Material | Aluminum |
| Insert Size | 3/8 in |
| Flange Width | 1-7/8 in |
| Drop Bar Material | Neoprene |
| Performance | Heavy Duty |
| Flange Height | 1-7/8 in |
| Housing Material | Aluminum |
| For Use With | 38 in Wide Doors |
| Projection | 3/4 in |
| Insert Type | Sponge |
| Item | Automatic Door Bottom |
| UL Fire Rating | UL10C |
| Overall Length | 36 in |
| Flange Finish | Anodized |
| Insert Material | Neoprene |
| Insert Color | Black |
| Flange Thickness | 0.594 in |
| Finish | Anodized |
| Standards | ANSI/BHMA A156.22, ASTM E 90-2009, ASTM E-283-04 (2012), GREENGUARD Gold Certified, UL 1784 |
| Hardware | Included |
| Green Certification or Other Recognition | Environmental Transparency Through EPD (Environmental Product Declaration) |
| Product Type | Door Bottom |
| Overall Width | 3/8 in |
| Overall Height | 1-7/8 in |
| Includes | Mountin Screws |
| Depth (In.) | 0.9 |
| Performance Grade | 1 |
| Includes Hardware | Hardware Included |
| For Use With Door Type | Automatic Door |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
