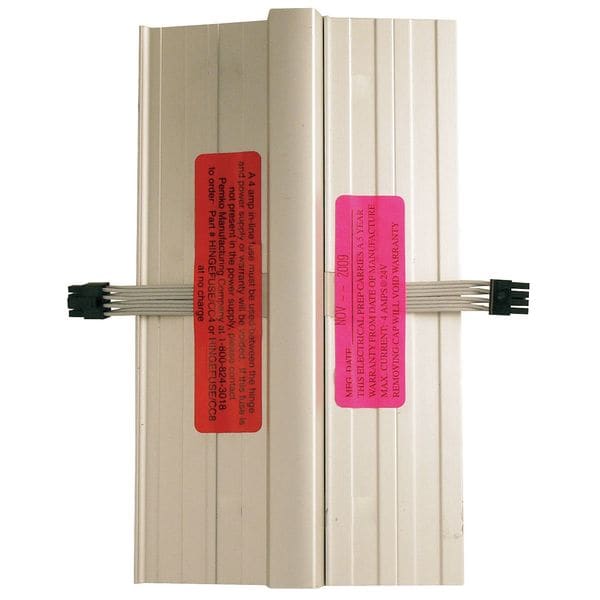

Electrified Hinge, Aluminum, Full Mortise Mounting, 13/16 in Leaf W x 1 5/8 in Leaf H
| Door Leaf Height | 1-5/8 in |
|---|---|
| Door Leaf Thickness | 0.187 in |
| Door Leaf Width | 13/16 in |
| Finish | Clear Anodized |
| Holes per Leaf | 20 |
| Load Capacity | 540 lb |
| Material | Aluminum |
| Mounting | Full Mortise |
| Orientation | Non Handed |
| Range of Motion | 180 deg |
| Required Door Thickness | 1-3/4 in |
| Features | Electrified Hinge with Serviceable/Removable Module; Short Leaf Flush; Heavy Duty, Grade 1 |
| Item | Electrified Hinge |
| Frame Leaf Height | 1-5/8 in |
| Frame Leaf Width | 13/16 in |
| Hardware | Yes |
| Includes | Hardware |
| Frame Leaf Thickness | 0.187 in |
| Ligature Resistant | No |
| Holes | With |
| Standards | ANSI/BHMA, UBC 7.2 |
| Bearing Type | Concealed |
| UL Fire Rating | UL10C, UL10B |
| Hinge Type | Piano |
| Range of Motion - Maximum | 180 deg |
| Includes Holes | Holes Included |
| Mounting Style | Full Mortise |
| Includes Hardware | Hardware Included |
| Number of Holes per Leaf | 20 |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
