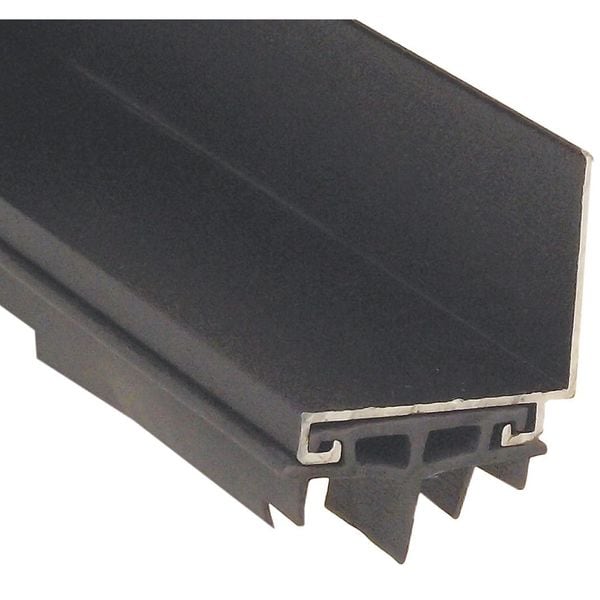

Insert Size 11/16", 1-9/32"W x 1"H x 48"L Alum. Door Bottom
| Length | 48 in |
|---|---|
| Color | Dark Bronze |
| Width | 1-9/32 in |
| Insert Size | 11/16 in |
| Standards | ANSI/BHMA A156.22, ASTM E 90-2009, ASTM E-283-04 (2012), GREENGUARD Gold Certified, UL 1784 |
| Hardware | Included |
| Insert Color | Black |
| Finish | Anodized/Dark Bronze |
| Insert Material | Vinyl |
| Flange Finish | Anodized |
| Flange Material | Aluminum |
| Projection | 11/16 in |
| Performance | Heavy Duty |
| For Use With | 48 in Wide 1-3/4 in Doors |
| UL Fire Rating | UL10C |
| Flange Width | 1-5/16 in |
| Flange Height | 1-1/16 in |
| Item | Door Sweep |
| Green Certification or Other Recognition | GREENGUARD(R) GOLD Certified |
| Product Type | Door Bottom |
| Overall Width | 1-5/16 in |
| Housing Material | Aluminum |
| Overall Height | 1-3/4 in |
| Flange Thickness | 0.688 in |
| Overall Length | 48 in |
| Features | Slotted Holes |
| Performance Grade | 1 |
| Includes Hardware | Hardware Included |
| Sweep Type | Fin |
| Door Width - Maximum | 1-3/4 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
