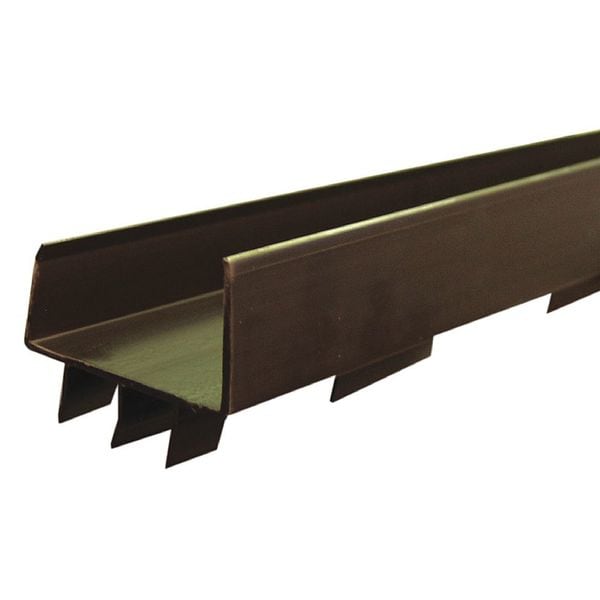

Insert Size 9/16", 1-3/4"W x 1-1/8"H Alum. Door Bottom
| Length | 36 in |
|---|---|
| Color | Dark Brown |
| Width | 1-3/4 in |
| For Use With | 36 in Wide 1-3/4 in Doors |
| Flange Finish | Anodized |
| Finish | Powder Coated |
| Standards | ANSI/BHMA A156.22, ASTM E 90-2009, ASTM E-283-04 (2012), GREENGUARD Gold Certified, UL 1784 |
| Insert Size | 9/16 in |
| UL Fire Rating | UL10C |
| Insert Color | Dark Brown |
| Flange Width | 1-3/4 in |
| Flange Material | Vinyl |
| Performance | Heavy Duty |
| Flange Height | 1 in |
| Hardware | Included |
| Item | Door Sweep |
| Insert Material | Vinyl |
| Projection | 9/16 in |
| Green Certification or Other Recognition | Environmental Transparency Through EPD (Environmental Product Declaration), GREENGUARD(R) GOLD Certified |
| Product Type | Door Bottom |
| Overall Width | 1-3/4 in |
| Overall Length | 36 in |
| Housing Material | Vinyl |
| Overall Height | 1-11/16 in |
| Flange Thickness | 0.563 in |
| ANSI/BHMA Finish | Unfinished |
| Performance Grade | 1 |
| Includes Hardware | Hardware Included |
| Door Width - Maximum | 1-3/4 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
