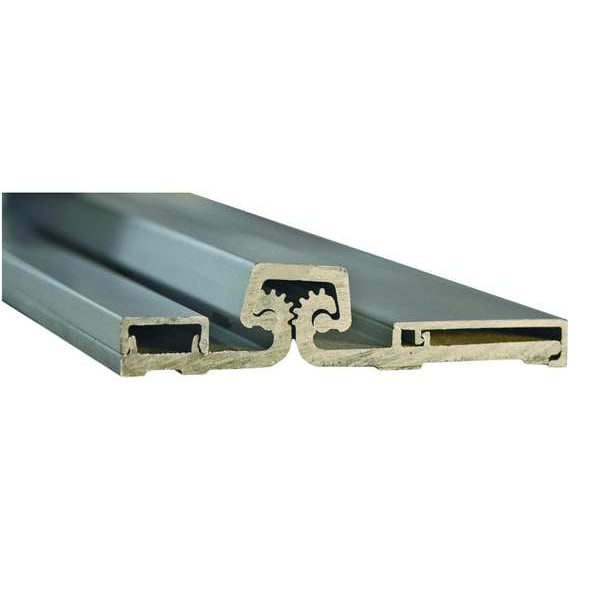

Piano Hinge, Bronze, Center Pivot Mounting, 1 1/4 in Leaf W x 83 in Leaf H, Clear Anodized
| Door Leaf Height | 95 in |
|---|---|
| Door Leaf Thickness | 0.187 in |
| Door Leaf Width | 1-3/8 in |
| Finish | Clear Anodized |
| Holes per Leaf | 10 |
| Load Capacity | 540 lb |
| Material | Bronze |
| Mounting | Center Pivot |
| Orientation | Non Handed |
| Range of Motion | 180 deg |
| Required Door Thickness | 1-3/4 in |
| Features | Heavy Duty, Grade1 Capacity; Full Surface Units are Designed Mainly for Retrofit Work and are Applied to the Exposed Surfaces of the Door and Frame |
| UL Fire Rating | UL10C |
| Holes | With |
| Frame Leaf Thickness | 0.187 in |
| Item | Piano Hinge |
| Hardware | Not included |
| Frame Leaf Height | 83 in |
| Standards | ANSI/BHMA A156.26, UL Certified |
| Ligature Resistant | No |
| Frame Leaf Width | 1-1/4 in |
| Length | 6 ft 11 in |
| Overall Width | 2-7/8 in |
| Width | 3-3/16 in |
| Height | 3/4 in |
| Color | Natural |
| Hand Orientation | Non-Handed |
| ANSI/BHMA Finish | Clear Anodized, Satin Aluminum |
| Includes Hardware | Hardware Not Included |
| Number of Holes per Leaf | 10 |
| Door Thickness - Maximum | 1-3/4 in |
| Door Thickness - Minimum | 1-3/4 in |
| Hinge Length | 10 ft |
| Range of Motion - Maximum | 180 deg |
| Fire Rating | 3 hr |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
