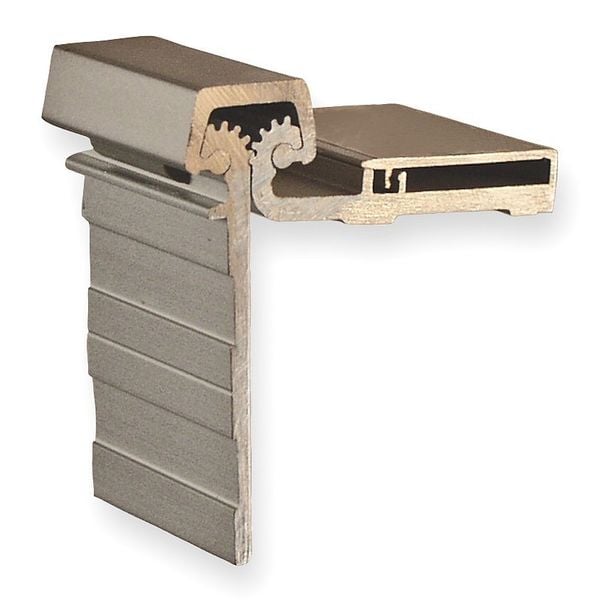

Piano Hinge, Bronze, Half Surface Mounting, 2 in Leaf W x 2 9/16 in Leaf H, Clear Anodized
| Door Leaf Height | 2-9/16 in |
|---|---|
| Door Leaf Thickness | 0.187 in |
| Door Leaf Width | 1-7/8 in |
| Finish | Clear Anodized |
| Holes per Leaf | 10 |
| Load Capacity | 280 lb |
| Material | Bronze |
| Mounting | Half Surface |
| Orientation | Non Handed |
| Range of Motion | 180 deg |
| Required Door Thickness | 1-3/4 in |
| Features | Half Surface Units are Designed Mainly for Retrofit Work and are Applied to the Exposed Surface of the Door and the Frame Rabbet |
| UL Fire Rating | UL10C |
| Holes | With |
| Overall Width | 4-1/2 in |
| Standards | BHMA, cULus Listed |
| Length | 6 ft 11 in |
| Frame Leaf Height | 2-9/16 in |
| Hardware | Not included |
| Frame Leaf Width | 2 in |
| Frame Leaf Thickness | 0.187 in |
| Item | Piano Hinge |
| Ligature Resistant | No |
| Width | 2-1/4 in |
| Height | 2-9/16 in |
| Color | Natural |
| Hand Orientation | Non-Handed |
| Fire Rating | 3 hr |
| Range of Motion - Maximum | 180 deg |
| Number of Holes per Leaf | 10 |
| Includes Hardware | Hardware Not Included |
| ANSI/BHMA Finish | Clear Anodized, Satin Aluminum |
| Door Thickness - Maximum | 2-1/4 in |
| Door Thickness - Minimum | 1-3/4 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
