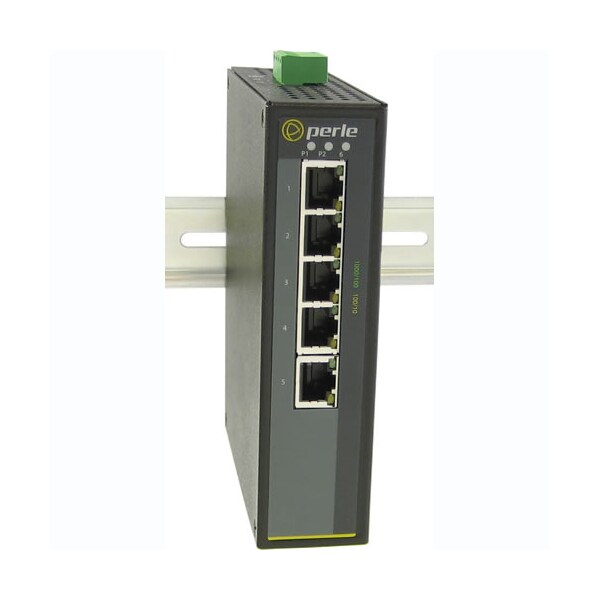

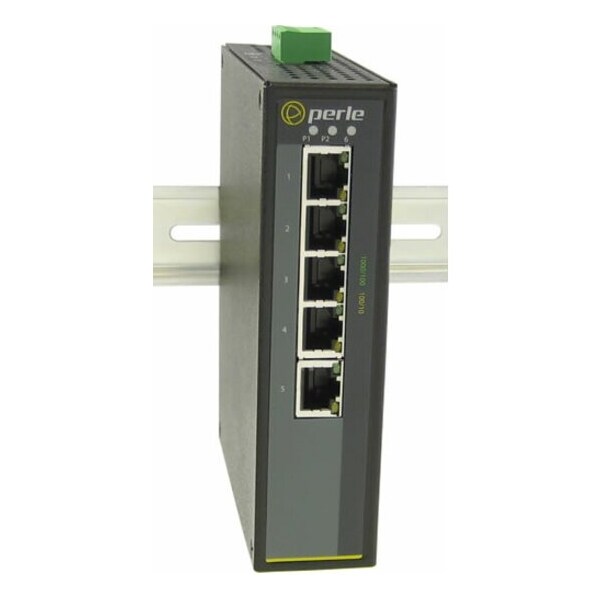

105G-S1Sc80D Ethernet Switch
| Item | Ethernet Switch |
|---|---|
| Height | 1.4 in |
| Depth | 5.4 in |
| Mounting | Panel, Rail, Wall |
| Includes | DIN Rail Attachment, Terminal Block, Installation Guide |
| Width | 4.4 in |
| Standards | IEEE Standards: 802.3, 802.3u, 802.3x, 802.3ab Safety: UL 60950-1, IEC 60950-1:2005+A1:2009 and, EN 60950-1:2006+A11:2009+A1:2010+A12:2011, CE Mark, UL508 ( Industrial )Emissions: FCC 47 Part 15 Class B, CISPR 22:2008/EN55022:2010 (Class B), CISPR 24:2010/EN 55024:2010EMC and Immunity: IEC/EN 61000-4-2 (ESD) : Contact discharge +/- 6kV, Air Discharge +/- 8kV, IEC/EN 61000-4-3 (RS) : 80 MHz to 2.7 Ghz ; 10V/m, 800 MHz to 1000 MHz; 20V/m, IEC/EN 61000-4-4 (EFT) : DC power line +/- 2 kV, Data Line +/- 1kV, IEC/EN 61000-4-5 (Surge) : DC power line, Line/Line +/- 1kV, Line/Earth +/- 2kV, Data Line line/earth +/- 1kV, IEC/EN 61000-4-6 (CS) : 150kHz to 80 MHz; 10V, IEC/EN 61000-4-8, IEC/EN 61000-6-2 ( General Immunity in Industrial Environments )Laser Safety: EN 60825-1:2007, Fiber optic transmitters on this device meet Class 1 Laser safety requirements per IEC-60825 FDA/CDRH standards and comply with 21CFR1040.10 and 21CFR1040.11.Other: ECCN: 5A991A, HTSUS Number: 8517.62.0050 |
| Product Type | Ethernet Switch |
| Power Source | Power Supply |
| Manageable | No |
| PoE (RJ-45) Port | No |
| Redundant Power Supply Supported | Yes |
| USB | No |
| Management Port | No |
| Media Type Supported | Optical Fiber, Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 5 |
| Port/Expansion Slot Details | (6) Gigabit Ethernet Network |
| MTBF | 522,423 hr |
| Green Environmental Attribute | Environmentally Friendly |
| Uplink Port | No |
| Network Technology | 1000Base-BX, 10/100/1000Base-T |
| Fiber Mode Supported | Single-mode |
| Number of SC Ports | 1 |
| Total Number of Network Ports | 6 |
| Stack Port | No |
| SC Port Type | Simplex |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Package Quantity | 1 |
