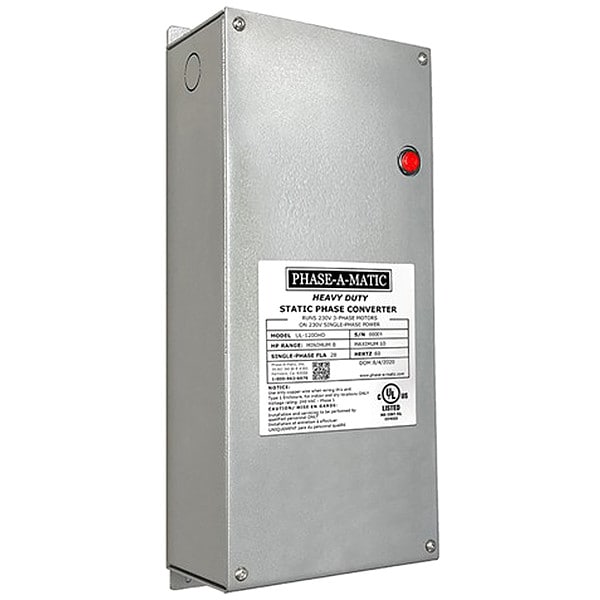

Phase Converter, Static, 208/230V AC, 208/230V AC, 60A, 28A
| Item | Phase Converter |
|---|---|
| Type | Static |
| Input Voltage | 208/230V AC |
| Output Voltage | 208/230V AC |
| Input (Amps) | 60A |
| Output Amps | 28 A |
| Output HP | 8 to 10 hp |
| Motor Load Rating | 67% |
| Knockout Size (In.) | 1/2 in |
| Input Phase AC | Single |
| Output Phase AC | Three |
| Height (In.) | 13 3/4 in |
| Width (In.) | 6 in |
| Depth (In.) | 3 3/10 in |
| HP Range | 8 to 10 HP |
| Standards | UL Listed |
| Duty | Heavy Duty |
| Converter Series | UL |
| Input Current | 60 A |
| Operating Voltage | 230V AC |
| Package Quantity | 1 |
