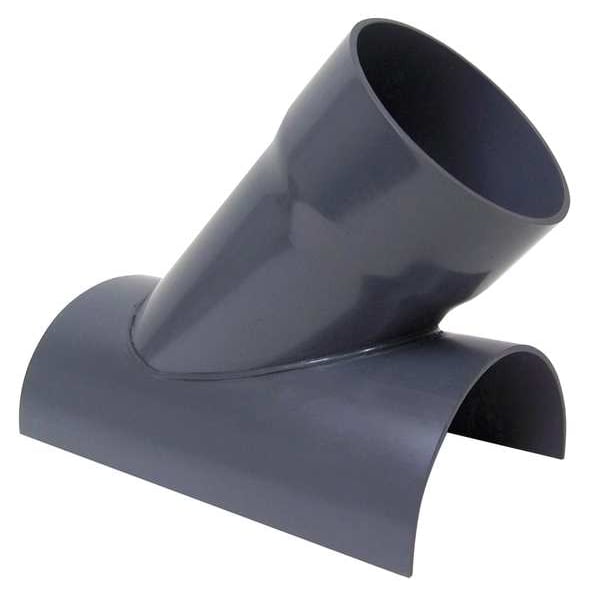

10-12 pulgadas de diámetro, 20.25 pulgadas de largo, 45 grados PVC cortado en Y con rama, diámetro del conducto de 12 pulgadas por 10 pulgadas, 20-1/4 pulgadas de largo.
| Duct Fitting Duct Size | 12" x 10" |
|---|---|
| For Use With | PVC Duct |
| Inlet Diameter | 10-3/4 in |
| Length | 20-1/4 in |
| Item | 10-12"dia 20.25"L 45 Degrees PVC In Cut Y Branc |
| Duct Fitting Diameter | 12 in x 10 in |
| Duct Fitting Material | Type I PVC |
| Standards | ASTM D1784, Cell Class 12454 |
| Duct Fitting Length | 20-1/4 in |
| Duct Fitting Item | 45 Degree Wye Branch |
| Material | PVC |
| Series | PVCSW |
| Color | Gray |
| Overall Length | 20-1/4 in |
| Overall Height | 17-1/2 in |
| Overall Width | 19-1/8 in |
| Type | 45 Degree Saddle |
| Inside Diameter | 12-3/8 in |
| Minimum Pressure Rating | Not Applicable |
| Shape | Wye |
| Maximum Pressure Rating | 10 in wc |
| Weight | 6.5 lb |
| Product Type | In Cut |
| Material Thickness | 0.2 in |
| Angle | 45 deg |
| Seal Material | Not Applicable |
| Maximum Temperature Rating | 140 deg F |
| For Nominal Duct Diameter | 10 in, 12 in |
| Package Quantity | 1 |
