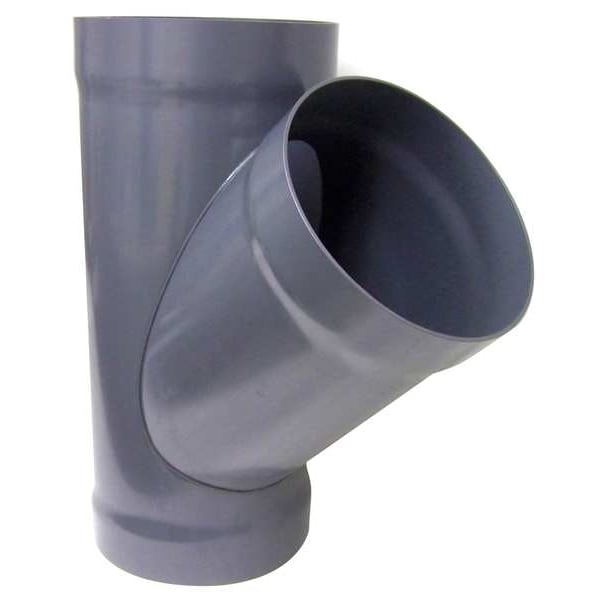

Rama en Y de 45 grados, 14 pulgadas de diámetro de conducto, PVC tipo I, 31-3/4 pulgadas de longitud.
| Duct Fitting Duct Size | 14" |
|---|---|
| For Use With | PVC Duct |
| Construction Material | Type I PVC |
| Inlet Diameter | 14 in |
| Length | 31-3/4 in |
| Item | 14"dia 31.75"L 45 Degrees PVC Wye Branch |
| Duct Fitting Diameter | 14 in |
| Duct Fitting Length | 31-3/4 in |
| Duct Fitting Material | Type I PVC |
| Standards | ASTM D1784, Cell Class 12454 |
| Duct Fitting Item | 45 Degree Wye Branch |
| Material | PVC |
| Overall Length | 31-3/4 in |
| Overall Height | 27-1/2 in |
| Series | PVCW |
| Type | 45 Degree |
| Overall Width | 31-3/4 in |
| Color | Gray |
| Product Type | Wye Branch |
| For Nominal Duct Diameter | 14 in |
| Angle | 45 deg |
| Minimum Pressure Rating | Not Applicable |
| Material Thickness | 0.2 in |
| Weight | 19.5 lb |
| Maximum Temperature Rating | 140 deg F |
| Environment Type | Sanitary |
| Seal Material | Not Applicable |
| Maximum Pressure Rating | 10 in wc |
| Shape | Wye |
| Inside Diameter | 14 in |
| Package Quantity | 1 |
