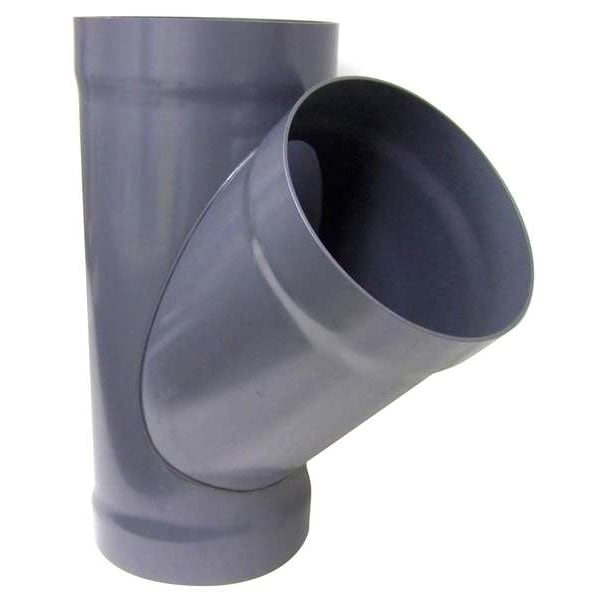

Rama Y de 45 grados, 16 pulgadas de diametro de ducto, PVC tipo I, 34-5/8 pulgadas de largo.
| Duct Fitting Duct Size | 16" |
|---|---|
| For Use With | PVC Duct |
| Construction Material | Type I PVC |
| Inlet Diameter | 16 in |
| Length | 34-5/8 in |
| Item | 16"dia 34.6/8"L 45 Degrees PVC Wye Branch |
| Duct Fitting Diameter | 16 in |
| Duct Fitting Item | 45 Degree Wye Branch |
| Duct Fitting Length | 34-5/8 in |
| Duct Fitting Material | Type I PVC |
| Standards | ASTM D1784, Cell Class 12454 |
| Material | PVC |
| Overall Height | 30-7/8 in |
| Overall Length | 34-5/8 in |
| Series | PVCW |
| Type | 45 Degree |
| Overall Width | 34-5/8 in |
| Color | Gray |
| Product Type | Wye Branch |
| Shape | Wye |
| Material Thickness | 0.2 in |
| Inside Diameter | 16 in |
| Maximum Pressure Rating | 10 in wc |
| Seal Material | Not Applicable |
| Angle | 45 deg |
| Maximum Temperature Rating | 140 deg F |
| For Nominal Duct Diameter | 16 in |
| Minimum Pressure Rating | Not Applicable |
| Weight | 20 lb |
| Environment Type | Sanitary |
| Package Quantity | 1 |
