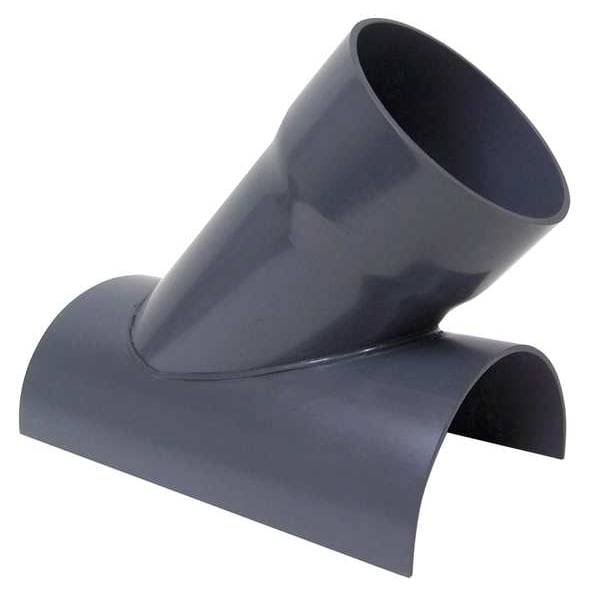

6-8 pulgadas de diámetro, 14.4 pulgadas de longitud, corte en PVC en forma de "Y" con una angulación de 45 grados, rama de 8 pulgadas x 6 pulgadas de diámetro, longitud de 14-3/8 pulgadas.
| Duct Fitting Duct Size | 8" x 6" |
|---|---|
| For Use With | PVC Duct |
| Inlet Diameter | 6-5/8 in |
| Length | 14-3/8 in |
| Item | 6-8"dia 14.4"L 45 Degrees PVC In Cut Wye Branch |
| Duct Fitting Diameter | 8 in x 6 in |
| Duct Fitting Material | Type I PVC |
| Duct Fitting Length | 14-3/8 in |
| Standards | ASTM D1784, Cell Class 12454 |
| Duct Fitting Item | 45 Degree Wye Branch |
| Material | PVC |
| Overall Width | 13-3/8 in |
| Overall Length | 14-3/8 in |
| Type | 45 Degree Saddle |
| Series | PVCSW |
| Color | Gray |
| Overall Height | 12-1/2 in |
| Product Type | In Cut |
| Material Thickness | 0.2 in |
| Weight | 4 lb |
| Maximum Temperature Rating | 140 deg F |
| Minimum Pressure Rating | Not Applicable |
| For Nominal Duct Diameter | 6 in, 8 in |
| Seal Material | Not Applicable |
| Shape | Wye |
| Maximum Pressure Rating | 10 in wc |
| Angle | 45 deg |
| Inside Diameter | 8-1/4 in |
| Package Quantity | 1 |
