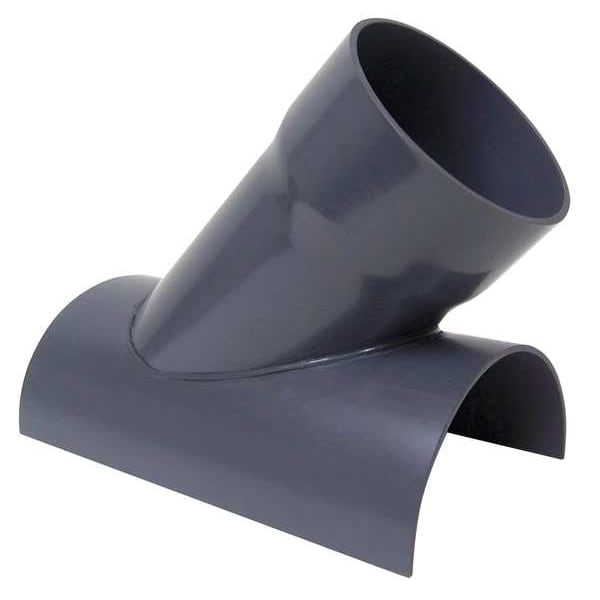

8-10" de diámetro, 17.25 pulgadas de longitud, 45 grados PVC en corte y rama, 10 pulgadas x 8 pulgadas de diámetro de conducto, 17-1/4 pulgadas de longitud.
| Duct Fitting Duct Size | 10" x 8" |
|---|---|
| For Use With | PVC Duct |
| Inlet Diameter | 8-5/8 in |
| Length | 17-1/4 in |
| Item | 8-10"dia 17.25"L 45 Degrees PVC In Cut Y Branch |
| Duct Fitting Diameter | 10 in x 8 in |
| Duct Fitting Length | 17-1/4 in |
| Duct Fitting Material | Type I PVC |
| Duct Fitting Item | 45 Degree Wye Branch |
| Standards | ASTM D1784, Cell Class 12454 |
| Material | PVC |
| Overall Width | 16-1/4 in |
| Overall Height | 15-1/2 in |
| Series | PVCSW |
| Overall Length | 17-1/4 in |
| Type | 45 Degree Saddle |
| Color | Gray |
| Seal Material | Not Applicable |
| Product Type | In Cut |
| Weight | 5 lb |
| Shape | Wye |
| Inside Diameter | 10-3/8 in |
| For Nominal Duct Diameter | 8 in, 10 in |
| Maximum Pressure Rating | 10 in wc |
| Minimum Pressure Rating | Not Applicable |
| Angle | 45 deg |
| Material Thickness | 0.2 in |
| Maximum Temperature Rating | 140 deg F |
| Package Quantity | 1 |
