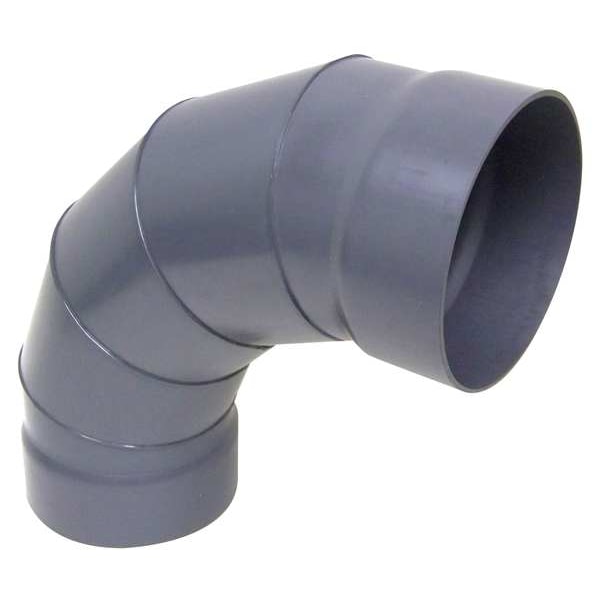

Codo de 90 grados, diámetro de conducto de 8 pulgadas, PVC Tipo I, longitud de 16 pulgadas.
| Duct Fitting Duct Size | 8" |
|---|---|
| For Use With | PVC Duct |
| Construction Material | Type I PVC |
| Inlet Diameter | 8-5/8 in |
| Length | 16 in |
| Outlet Diameter | 8-5/8 in |
| Item | 90 Degree Elbow |
| Duct Fitting Diameter | 8 in |
| Standards | ASTM D1784, Cell Class 12454 |
| Duct Fitting Material | Type I PVC |
| Duct Fitting Length | 16 in |
| Duct Fitting Item | 90 Degree Elbow |
| Material | PVC |
| Overall Length | 16 in |
| Color | Gray |
| Series | PVCEC |
| Type | 90 Degree, 3 Piece, 1-1/2 Radius |
| Overall Height | 20-1/4 in |
| Maximum Temperature Rating | 140 deg F |
| Weight | 7 lb |
| Material Thickness | 0.2 in |
| Material Grade | 1 |
| Shape | Elbow |
| Maximum Pressure Rating | 10 in wc |
| For Nominal Duct Diameter | 8 in |
| Minimum Pressure Rating | Not Applicable |
| For Duct Shape | Round |
| Seal Material | Not Applicable |
| Product Type | Elbow |
| Compatible with Brand | Plastic Supply |
| Centerline Radius | 16 in |
| Inside Diameter | 8-5/8 in |
| Angle | 90 deg |
| End Type | Plain |
| Number of Pieces | 5 |
| Connection Type | Socket |
| Package Quantity | 1 |
