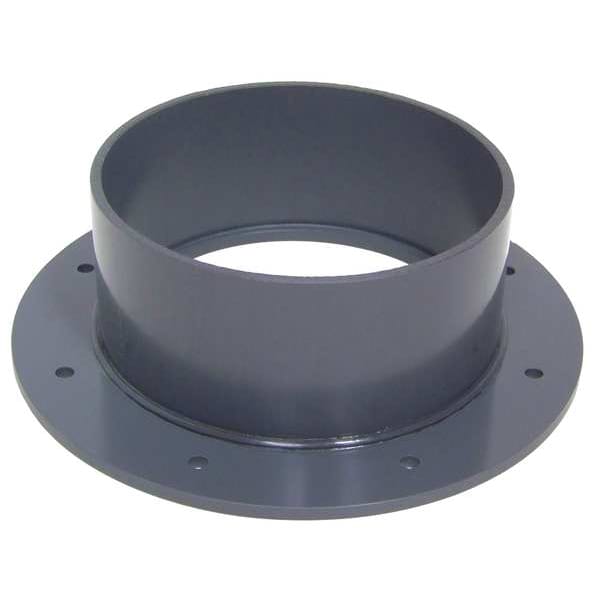

Brida, 16 pulgadas de diámetro de ducto, Tipo PVC I, 20 pulgadas de longitud, 3-3/4 pulgadas de altura.
| Duct Fitting Duct Size | 16" |
|---|---|
| For Use With | PVC Duct |
| Height | 3-3/4 in |
| Construction Material | Type I PVC |
| Inlet Diameter | 16 in |
| Length | 20 in |
| Outlet Diameter | 20 in |
| Item | Flange Adapter |
| Duct Fitting Diameter | 16 in |
| Duct Fitting Item | Flange |
| Standards | ASTM D1784, Cell Class 12454 |
| Duct Fitting Length | 3-3/4 in |
| Duct Fitting Material | Type I PVC |
| Material | PVC |
| Includes | Not Applicable |
| Duct Size | 16 in |
| Series | PVCF |
| Overall Width | 20 in |
| Overall Length | 20 in |
| Overall Height | 3-3/4 in |
| Seal Material | Not Applicable |
| Number of Holes on Flange | 18 |
| Flange Inner Diameter | 15-5/8 in |
| Overall Diameter | 20 in |
| For Nominal Duct Diameter | 16 in |
| Flange Outer Diameter | 20 in |
| Maximum Temperature Rating | 140 deg F |
| Gas Appliance Category | Not Applicable |
| Minimum Pressure Rating | Not Applicable |
| Connection Type | Socket |
| For Duct Shape | Round |
| Product Type | Angle Flange Adapter |
| Overall Depth | 3-1/4 in |
| Adapter Type | Angle Flange Adapter |
| Material Thickness | 0.3 in |
| Maximum Pressure Rating | 10 in wc |
| Bolt Circle Diameter | 18-1/2 in |
| Shape | Straight |
| Weight | 3.5 lb |
| Inside Diameter | 16 in |
| End Type | Socket |
| Branch Diameter | Not Applicable |
| Package Quantity | 1 |
