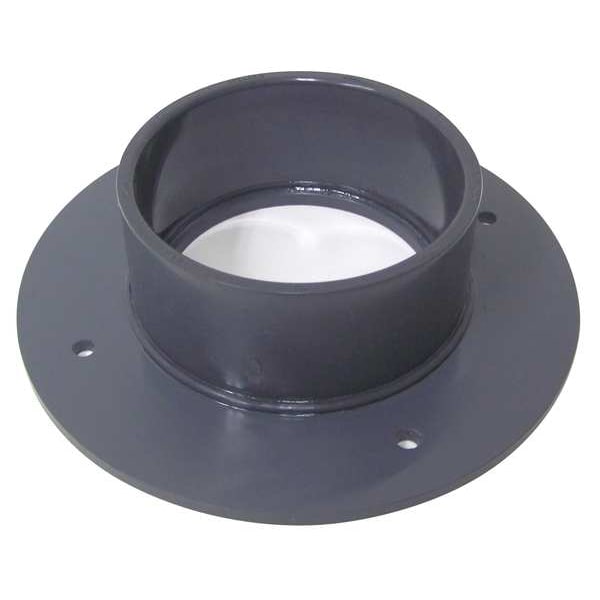

Brida, diámetro de conducto de 4 pulgadas, tipo I PVC, longitud de 8-1/2 pulgadas, altura de 3-1/4 pulgadas.
| Duct Fitting Duct Size | 4" |
|---|---|
| For Use With | PVC Duct |
| Height | 3-1/4 in |
| Construction Material | Type I PVC |
| Inlet Diameter | 4-1/2 in |
| Length | 8-1/2 in |
| Outlet Diameter | 8-1/2 in |
| Item | Flange Adapter |
| Duct Fitting Diameter | 4 in |
| Duct Fitting Item | Flange |
| Standards | ASTM D1784, Cell Class 12454 |
| Duct Fitting Material | Type I PVC |
| Duct Fitting Length | 2-1/4 in |
| Includes | Not Applicable |
| Duct Size | 4 in |
| Material | PVC |
| Overall Length | 8-1/2 in |
| Overall Width | 8-1/2 in |
| Series | PVCF |
| Overall Height | 2-1/4 in |
| Bolt Circle Diameter | 6-3/4 in |
| End Type | Socket |
| Material Thickness | 0.3 in |
| Overall Diameter | 8-1/2 in |
| Number of Holes on Flange | 4 |
| Maximum Pressure Rating | 10 in wc |
| Maximum Temperature Rating | 140 deg F |
| Flange Inner Diameter | 4-1/8 in |
| Gas Appliance Category | Not Applicable |
| Product Type | Angle Flange Adapter |
| For Duct Shape | Round |
| Adapter Type | Angle Flange Adapter |
| Shape | Straight |
| For Nominal Duct Diameter | 4 in |
| Flange Outer Diameter | 8-1/2 in |
| Seal Material | Not Applicable |
| Inside Diameter | 4-1/2 in |
| Minimum Pressure Rating | Not Applicable |
| Weight | 1.25 lb |
| Connection Type | Socket |
| Overall Depth | 2 in |
| Compatible Grainger Part Number | 6VKT7 |
| Branch Diameter | Not Applicable |
| Package Quantity | 1 |
