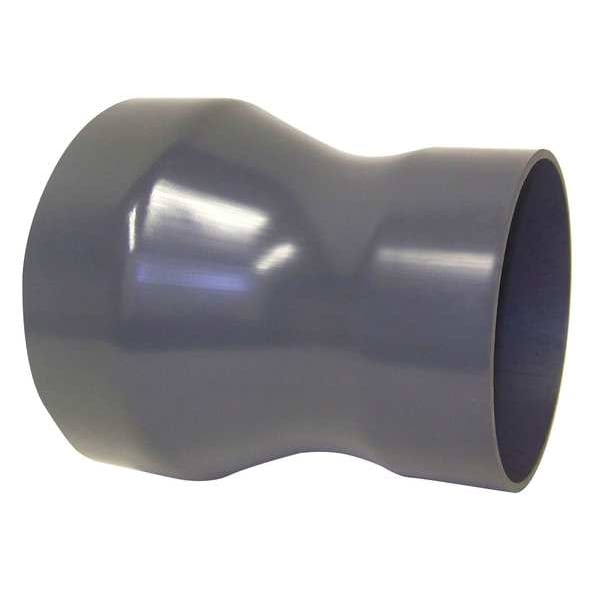

Conector reductor, 12 pulgadas x 10 pulgadas de diámetro de conducto, Tipo I PVC, 9-3/4 pulgadas de longitud.
| Duct Fitting Duct Size | 12" x 10" |
|---|---|
| For Use With | PVC Duct |
| Construction Material | Type I PVC |
| Inlet Diameter | 12 in |
| Length | 9-3/4 in |
| Outlet Diameter | 11 in |
| Item | Duct Reducer |
| Duct Fitting Diameter | 12 in x 10 in |
| Duct Fitting Length | 9-3/4 in |
| Duct Fitting Material | Type I PVC |
| Standards | ASTM D1784, Cell Class 12454 |
| Duct Fitting Item | Reducer Coupling |
| Material | PVC |
| Overall Height | 9-3/4 in |
| Type | Reducer |
| Series | PVCR |
| Overall Width | 12 in |
| Overall Length | 9-3/4 in |
| Color | Gray |
| Maximum Pressure Rating | 10 in wc |
| End Type | Plain |
| Weight | 4 lb |
| Material Thickness | 0.2 in |
| Inside Diameter | Not Applicable |
| Gas Appliance Category | Not Applicable |
| Maximum Temperature Rating | 140 deg F |
| Shape | Straight |
| Seal Material | Not Applicable |
| Connection Type | Press Fit |
| Product Type | Reducer |
| Material Grade | 1 |
| For Nominal Duct Diameter | 11 in, 12 in |
| Package Quantity | 1 |
