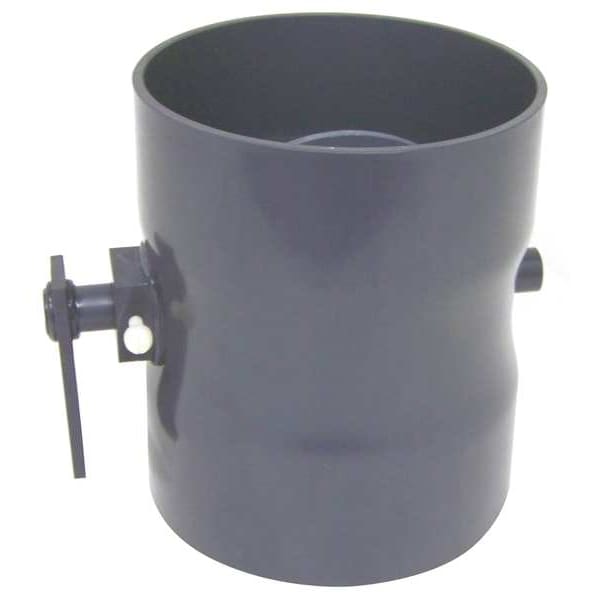

Mariposa redonda de compuerta, Tipo I PVC, 14-1/2" de altura.
| Height | 14-1/2 in |
|---|---|
| Construction Material | Type I PVC |
| Inlet Diameter | 12 in |
| Outlet Diameter | 12 in |
| Item | Butterfly Damper |
| Damper Shape | Round |
| Blade Type | Round |
| Duct Dia. | 12 in |
| Blade Material | Galvanized Steel |
| Includes | Locking Screw Included To Secure The Damper Blade In Position |
| Standards | ASTM D1784, Cell Class 12454 |
| Frame Material | Galvanized Steel |
| Damper Item | Butterfly Damper |
| Material | PVC |
| Overall Width | 15-1/4 in |
| Overall Height | 14-1/2 in |
| Color | Gray |
| Overall Length | 14-1/2 in |
| Series | PVCB |
| Product Type | Butterfly Valve |
| Maximum Pressure Rating | 10 in wc |
| Inside Diameter | Not Applicable |
| Shape | Round |
| Seal Material | Not Applicable |
| Weight | 7.5 lb |
| For Nominal Duct Diameter | 12 in |
| Minimum Pressure Rating | Not Applicable |
| Maximum Temperature Rating | 140 deg F |
| For Duct Shape | Round |
| Package Quantity | 1 |
