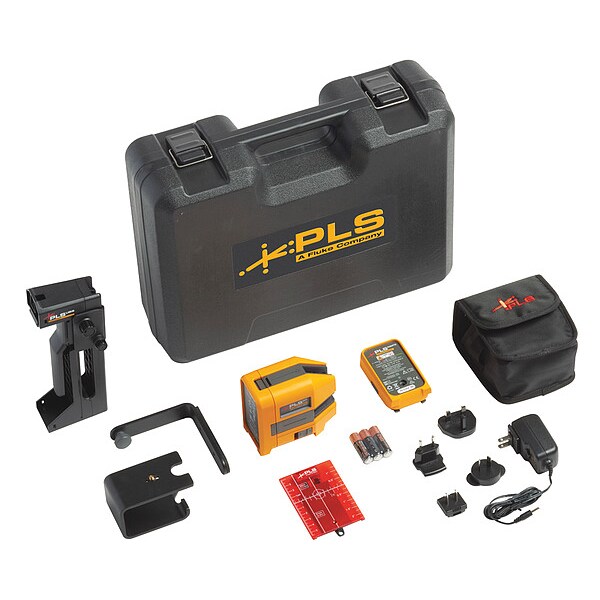

Combination Laser, 2 Beams, 4 Dots, 2 Lines
| Item | Cross Line Laser Kit |
|---|---|
| Laser Usage Environment | Interior, Exterior |
| Laser Projection | Horizontal, Vertical |
| Leveling Type | Pendulum Self-Leveling |
| Number of Beams | 2 |
| Number of Dots | 4 |
| Number of Lines | 2 |
| Laser Color | Red |
| Range w/o Detector | 50 ft |
| Features | Point Laser Direction: 90 Degrees Up, Down, Left, Right |
| Auto Leveling Range | +/-4 deg |
| Plumb Down | Yes |
| Auto Shutoff | Yes |
| Battery Type | Li-Ion |
| Total Number of Vials | 0 |
| IP Rating | IP54 |
| Accuracy | +/-1/8 in @ 30 ft |
| Rotating Speed | 0 RPM |
| Includes | Case, Floor Stand, Target, Bracket |
| Laser Class | Class 2 |
| Number of Scanning Modes | 0 |
| Range w/Detector | 200 ft |
| Power Source | (3) AA Batteries |
| Plumb Up | Yes |
| Length | 4-1/8 in |
| Height | 4-5/8 in |
| Width | 2-1/2 in |
| Thread Size | 1/4"-20, 5/8"-11 |
| Number of Level Vials | 0 |
| Number of Plumb Vials | 0 |
| Visual/Audible Indicators | Yes |
| Number of 45 Degree Vials | 0 |
| Overall Height | 4-5/8 in |
| Weight | 1.3 lb |
| Overall Depth | 4-1/8 in |
| Self-Leveling Range | +/-4 deg |
| Plumb Direction | Plumb Down, Plumb Up |
| Includes Batteries | Batteries Included |
| Operating Temperature - Maximum | 122 deg F |
| Working Range with Detector - Maximum | 200 ft |
| Mount Type | Mounting Bracket, Magnetic |
| Automatic Shutoff | Yes |
| Working Range without Detector - Maximum | 50 ft |
| Laser Beam Color | Red |
| Level Indicators | Visual, Audible |
| Use Location | Outdoor |
| Number of 45 Vials | 0 |
| Overall Width | 2-1/2 in |
| Tripod Thread Size | 5/8"-11, 1/4"-20 |
| Number of Planes | 0 |
| Standards | IEC 60825-1:2014 Class 2, IEC 61010-1, IEC 61326-1 |
| Laser Output | Less than1 mW |
| Operating Temperature - Minimum | 14 deg F |
| Package Quantity | 1 |
