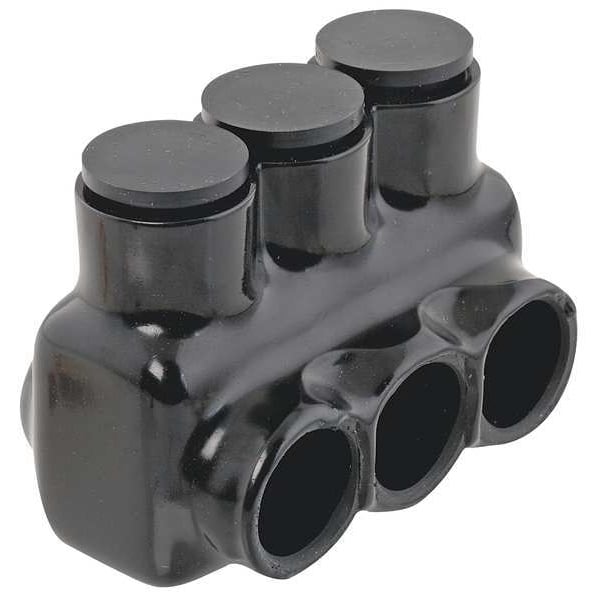

Insulated Multitap Connector, 2.63 In. L
| Item | Insulated Multitap Connector |
|---|---|
| Connector Type | Single-Sided Entry |
| No. of Ports | 3 |
| Min. Conductor Size | 6 AWG |
| Max. Conductor Size | 3/0 AWG |
| Stud Size | 5/16 in |
| Insulation Material | Plastisol |
| Material | Plastisol |
| Length | 2.63 in |
| Width | 1.6 in |
| Standards | cULus, UL 486B |
| Direct Burial Rated | No |
| Max. Voltage | 600V AC/DC |
| Screw Material | Aluminum |
| Head Style | Hex |
| Body Material | Aluminum |
| Length (Straight Wireway) | 2.63 in |
| Special Features | Abrasion and Chemical Resistant, Eliminates the Need for Cover and Taping, Insulated With High-Dielectric Strength Plastisol, Molded for Precise Fit and Supplied With Removable Access Plugs Over the Hex Screws, UV Resistant, Will Not Support Combustion, Wire Entry Ports on One Side Only |
| For Stranded Copper Wire Size - Minimum | 6 AWG |
| Finish | Plastisol |
| Compatible with Product Type | Copper and Aluminum Cables |
| Overall Length | 2.63 in |
| Color | Black |
| Hex Size | 5/16 in |
| Tap Shape | L |
| RoHS Compliant | Yes |
| Minimum Operating Temperature | -49 deg F |
| Maximum Operating Temperature | 194 deg F |
| Maximum Voltage | 600 V |
| Number of Ports | 3 |
| Torque | 250 in-lb |
| For Conductor Material | Copper, Aluminum |
| Strip Length | 1-1/8 in |
| Overall Width | 1.6 in |
| For Stranded Copper Wire Size - Maximum | 3/0 AWG |
| Type | Single-Sided Entry |
| Wire Size | 3/0-6 AWG |
| Voltage Rating | 600 V |
| Dimensions | L=2.63 - W=1.6 - H=1.8 |
| Temperature Rating | 90° C |
| Number Of Conductors | 3 |
| Environmental Conditions | 90 C |
| Standard | cULus |
| Application | Wire Termination |
| Wire Type | C, Class B |
| Conductor Cu Size Range | 3/0 AWG – 6 AWG |
| Assortment | Black UV Coated Pre-Insulated Connectors |
| Ul File No | E186991 |
| Al Conductor Max Amp | 175 |
| Wire Cable Class | Class B, Class C |
| Conductor Type | Copper, Aluminum |
| Hex Wrench Size | 0.25 |
| Max Torque | 250 |
| Ul Standard | B, UL 486A |
| Conductors Count | 3 |
| Temp Rating | 90C, AL9CU |
| Env Temp | Cold Temperature rated to -45C |
| Conductor Al Size Range | 3/0 AWG – 6 AWG |
| Cu Conductor Max Amp | 225 |
| Package Quantity | 1 |
