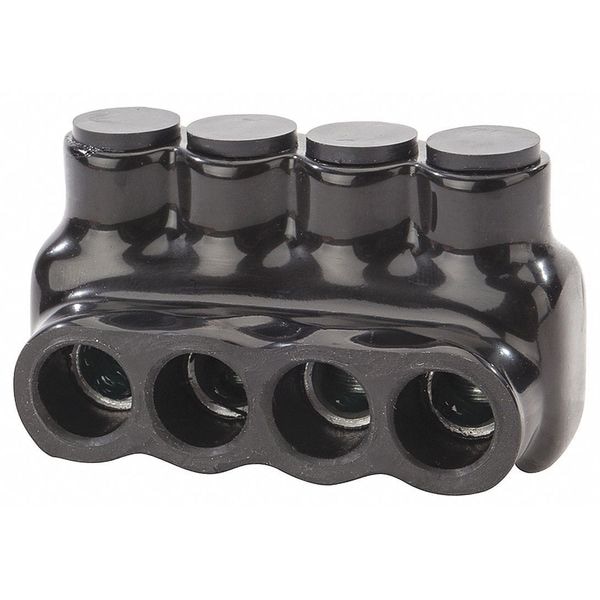

Conector multitap aislado, 2.89 pulgadas de largo.
| Item | Insulated Multitap Connector |
|---|---|
| Connector Type | Single-Sided Entry |
| No. of Ports | 4 |
| Min. Conductor Size | 14 AWG |
| Max. Conductor Size | 1/0 AWG |
| Stud Size | 3/16 in |
| Insulation Material | Plastisol |
| Material | Plastisol |
| Length | 2.89 in |
| Width | 1-1/2 in |
| Body Material | Aluminum |
| Max. Voltage | 600V AC/DC |
| Direct Burial Rated | No |
| Head Style | Hex |
| Screw Material | Steel |
| Standards | cULus, UL 486B |
| Length (Straight Wireway) | 2.89 in |
| Minimum Operating Temperature | -49 deg F |
| Special Features | Abrasion and Chemical Resistant, Eliminates the Need for Cover and Taping, Insulated With High-Dielectric Strength Plastisol, Molded for Precise Fit and Supplied With Removable Access Plugs Over the Hex Screws, UV Resistant, Will Not Support Combustion, Wire Entry Ports on One Side Only |
| For Conductor Material | Copper, Aluminum |
| Overall Length | 2.89 in |
| Compatible with Product Type | Copper and Aluminum Cables |
| Overall Width | 1-1/2 in |
| Torque | 180 in-lb |
| RoHS Compliant | Yes |
| For Stranded Copper Wire Size - Minimum | 14 AWG |
| Hex Size | 3/16 in |
| For Stranded Copper Wire Size - Maximum | 1/0 AWG |
| Strip Length | 1-1/16 in |
| Finish | Plastisol |
| Tap Shape | L |
| Number of Ports | 4 |
| Maximum Voltage | 600 V |
| Color | Black |
| Maximum Operating Temperature | 194 deg F |
| Screw Finish | Tin Plated |
| Type | Single-Sided Entry |
| Wire Size | 1/0-14 AWG |
| Application | Wire Termination |
| Standard | cULus |
| Voltage Rating | 600 V |
| Wire Type | C, Class B |
| Number Of Conductors | 4 |
| Environmental Conditions | 90 C |
| Temperature Rating | 90° C |
| Dimensions | L=2.89 - W=1.5 - H=1.688 |
| Conductor Type | Copper, Aluminum |
| Wire Cable Class | Class B, Class C |
| Conductor Cu Size Range | 1/0 AWG – 14 AWG |
| Temp Rating | 90C, AL9CU |
| Env Temp | Cold Temperature rated to -45C |
| Assortment | Black UV Coated Pre-Insulated Connectors |
| Hex Wrench Size | 0.1875 |
| Conductors Count | 4 |
| Conductor Al Size Range | 1/0 AWG – 12 AWG |
| Ul File No | E186991 |
| Cu Conductor Max Amp | 170 |
| Al Conductor Max Amp | 135 |
| Max Torque | 80 |
| Ul Standard | B, UL 486A |
| Package Quantity | 1 |
