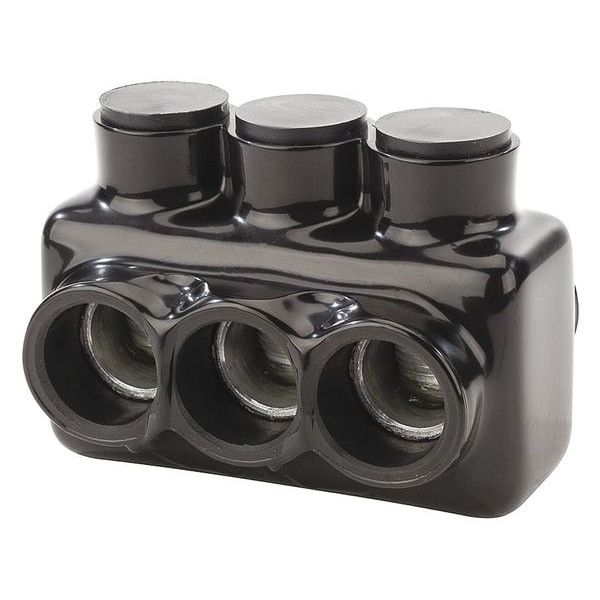

Conector Multitap Aislado, 3.41 pulgadas de largo.
| Item | Insulated Multitap Connector |
|---|---|
| Connector Type | Double-Sided Entry |
| No. of Ports | 3 |
| Min. Conductor Size | 6 AWG |
| Max. Conductor Size | 600 kcmil |
| Insulation Material | Plastisol |
| Stud Size | 5/16 in |
| Length | 3.41 in |
| Width | 4.55 in |
| Direct Burial Rated | No |
| Max. Voltage | 600V AC/DC |
| Head Style | Hex |
| Screw Material | Steel |
| Body Material | Aluminum |
| Standards | cULus, UL 486A |
| Length (Straight Wireway) | 3.41 in |
| For Stranded Copper Wire Size - Minimum | 6 AWG |
| For Conductor Material | Copper, Aluminum |
| Compatible with Product Type | Copper and Aluminum Cables |
| Finish | Plastisol |
| Overall Length | 4.55 in |
| For Stranded Copper Wire Size - Maximum | 600 kcmil |
| RoHS Compliant | Yes |
| Hex Size | 5/16 in |
| Tap Shape | Z |
| Torque | 550 in-lb |
| Maximum Voltage | 600 V |
| Screw Finish | Tin Plated |
| Overall Width | 2.96 in |
| Minimum Operating Temperature | -49 deg F |
| Strip Length | 2 in |
| Number of Ports | 3 |
| Special Features | Abrasion and Chemical Resistant, Eliminates the Need for Cover and Taping, Insulated With High-Dielectric Strength Plastisol, Molded for Precise Fit and Supplied With Removable Access Plugs Over the Hex Screws, Supplied With Removable Plugs to Close the Entry Port Not Being Utilized, UV Resistant, Will Not Support Combustion, Wire Entry Ports on Both Sides of the Connector Allow for Access From Either Side |
| Color | Black |
| Maximum Operating Temperature | 167 deg F |
| Ul File No | E186991 |
| Env Temp | Cold Temperature rated to -45C |
| Hex Wrench Size | 0.3125 |
| Temp Rating | 90C, AL9CU |
| Assortment | Black UV Coated Pre-Insulated Connectors |
| Conductor Type | Copper, Aluminum |
| Ul Standard | B, UL 486A |
| Cu Conductor Max Amp | 475 |
| Conductors Count | 3 |
| Certifications | cULus |
| Wire Cable Class | Class B, Class C |
| Al Conductor Max Amp | 385 |
| Max Torque | 550 |
| Conductor Al Size Range | 600 MCM-6 AWG |
| Conductor Cu Size Range | 600 MCM-6 AWG |
| Package Quantity | 1 |
