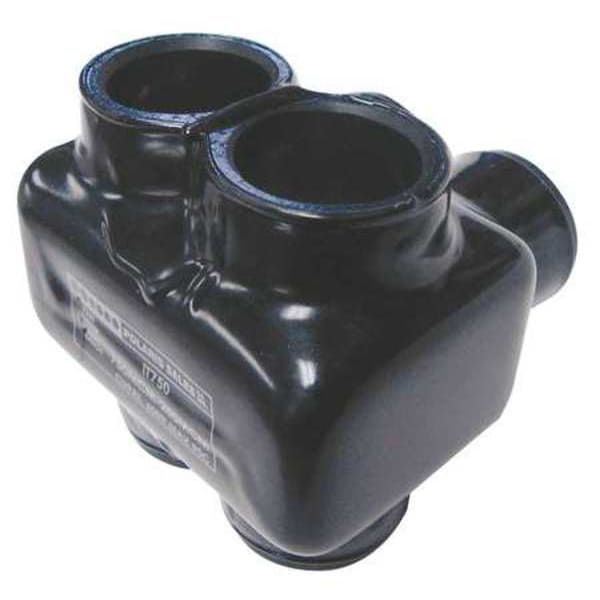

Conector multitap aislado, 3.48 pulgadas de largo.
| Item | Insulated Multitap Connector |
|---|---|
| Connector Type | Double-Sided Entry |
| No. of Ports | 2 |
| Min. Conductor Size | 250 kcmil |
| Max. Conductor Size | 750 kcmil |
| Insulation Material | Plastisol |
| Stud Size | 3/8 in |
| Length | 3.48 in |
| Width | 3-1/2 in |
| Max. Voltage | 600V AC/DC |
| Screw Material | Aluminum |
| Head Style | Hex |
| Direct Burial Rated | No |
| Body Material | Aluminum |
| Standards | cULus |
| Length (Straight Wireway) | 3.48 in |
| Hex Size | 3/8 in |
| Overall Length | 3.48 in |
| Torque | 550 in-lb |
| Minimum Operating Temperature | -49 deg F |
| Special Features | Abrasion and Chemical Resistant, Insul-Tap Connectors, Suitable for Connecting Two Wires, UV Resistant, Will Not Support Combustion |
| For Conductor Material | Copper, Aluminum |
| For Stranded Copper Wire Size - Maximum | 750 kcmil |
| Maximum Operating Temperature | 194 deg F |
| Color | Black |
| Finish | Plastisol |
| For Stranded Copper Wire Size - Minimum | 250 kcmil |
| Number of Ports | 2 |
| Strip Length | 2 in |
| Compatible with Product Type | Copper and Aluminum Cables |
| RoHS Compliant | Yes |
| Overall Width | 3-1/2 in |
| Maximum Voltage | 600 V |
| Tap Shape | Z |
| Conductor Type | Copper, Aluminum |
| Conductor Al Size Range | 750 MCM – 1/0 AWG |
| Wire Cable Class | Class B, Class C |
| Ul Standard | B, UL 486A |
| Env Temp | Cold Temperature rated to -45C |
| Cu Conductor Max Amp | 475 |
| Max Torque | 550 |
| Hex Wrench Size | 0.375 |
| Ul File No | E186991 |
| Al Conductor Max Amp | 385 |
| Conductors Count | 2 |
| Temp Rating | 75C, AL7CU |
| Assortment | Black UV Coated Pre-Insulated Connectors |
| Conductor Cu Size Range | 750 MCM – 1/0 AWG |
| Application | Splice |
| Package Quantity | 1 |
