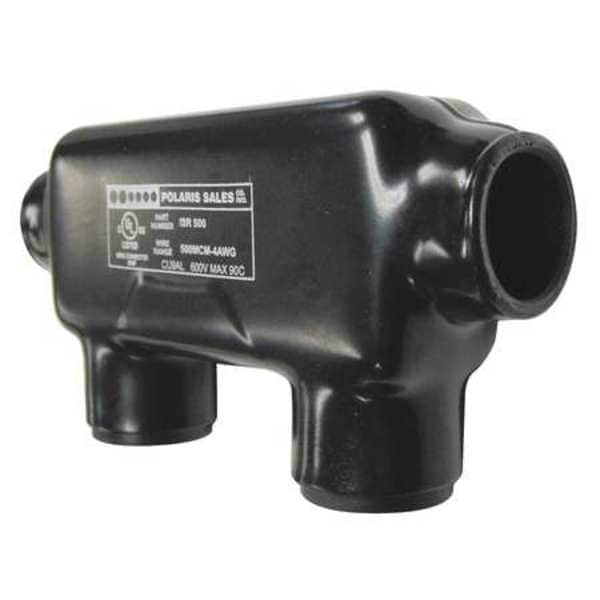

Insulated Multitap Connector, 4.62 In. L
| Item | Insulated Multitap Connector |
|---|---|
| Connector Type | In Line |
| No. of Ports | 2 |
| Min. Conductor Size | 4 AWG |
| Max. Conductor Size | 500 kcmil |
| Insulation Material | Plastisol |
| Stud Size | 5/16 in |
| Length | 4.62 in |
| Width | 1.62 in |
| Head Style | Hex |
| Screw Material | Steel |
| Direct Burial Rated | No |
| Max. Voltage | 600V AC/DC |
| Standards | cULus, UL 486A |
| Body Material | Aluminum |
| Length (Straight Wireway) | 4.62 in |
| Tap Shape | T |
| Finish | Plastisol |
| Number of Ports | 2 |
| Strip Length | 1-3/4 in |
| For Stranded Copper Wire Size - Minimum | 4 AWG |
| Overall Width | 1.62 in |
| Hex Size | 5/16 in |
| Color | Black |
| Maximum Voltage | 600 V |
| Minimum Operating Temperature | -49 deg F |
| Screw Finish | Tin Plated |
| Special Features | Abrasion and Chemical Resistant, UV Resistant, Will Not Support Combustion |
| Overall Length | 4.62 in |
| RoHS Compliant | Yes |
| Compatible with Product Type | Copper and Aluminum Cables |
| For Stranded Copper Wire Size - Maximum | 500 kcmil |
| Torque | 450 in-lb |
| Maximum Operating Temperature | 194 deg F |
| For Conductor Material | Copper, Aluminum |
| Assortment | Black UV Coated Pre-Insulated Connectors |
| Hex Wrench Size | 0.3125 |
| Ul Standard | B, UL 486A |
| Cu Conductor Max Amp | 430 |
| Conductor Type | Copper, Aluminum |
| Al Conductor Max Amp | 350 |
| Certifications | cULus |
| Max Torque | 450 |
| Application | Splice |
| Wire Cable Class | Class B, Class C |
| Temp Rating | 90C, AL9CU |
| Env Temp | Cold Temperature rated to -45C |
| Conductor Al Size Range | 500 MCM – 4 AWG |
| Conductors Count | 2 |
| Ul File No | E186991 |
| Conductor Cu Size Range | 500 MCM – 4 AWG |
| Package Quantity | 1 |
