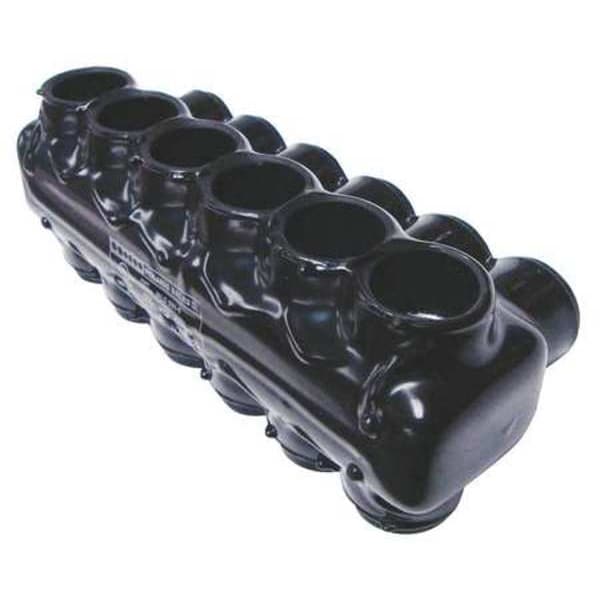

Insulated Multitap Connector, 7.45 In. L
| Item | Insulated Multitap Connector |
|---|---|
| Connector Type | Double-Sided Entry |
| No. of Ports | 6 |
| Min. Conductor Size | 4 AWG |
| Max. Conductor Size | 500 kcmil |
| Insulation Material | Plastisol |
| Stud Size | 5/16 in |
| Length | 7.45 in |
| Width | 2.81 in |
| Direct Burial Rated | No |
| Body Material | Aluminum |
| Screw Material | Aluminum |
| Standards | cULus, UL 486A |
| Head Style | Hex |
| Max. Voltage | 600V AC/DC |
| Length (Straight Wireway) | 7.45 in |
| For Stranded Copper Wire Size - Minimum | 4 AWG |
| Finish | Plastisol |
| Overall Length | 7.52 in |
| Overall Width | 2.83 in |
| For Stranded Copper Wire Size - Maximum | 500 kcmil |
| Hex Size | 5/16 in |
| Color | Black |
| Maximum Operating Temperature | 194 deg F |
| Strip Length | 1-3/4 in |
| Maximum Voltage | 600 V |
| Compatible with Product Type | Copper and Aluminum Cables |
| Special Features | Abrasion and Chemical Resistant, Eliminates the Need for Cover and Taping, Insulated With High-Dielectric Strength Plastisol, Molded for Precise Fit and Supplied With Removable Access Plugs Over the Hex Screws, Supplied With Removable Plugs to Close the Entry Port Not Being Utilized, UV Resistant, Will Not Support Combustion, Wire Entry Ports on Both Sides of the Connector Allow for Access From Either Side |
| RoHS Compliant | Yes |
| Torque | 450 in-lb |
| Minimum Operating Temperature | -49 deg F |
| Tap Shape | Z |
| For Conductor Material | Copper, Aluminum |
| Number of Ports | 6 |
| Temp Rating | 90C, AL9CU |
| Conductor Type | Copper, Aluminum |
| Conductor Cu Size Range | 500 MCM-4 AWG |
| Ul Standard | B, UL 486A |
| Max Torque | 450 |
| Al Conductor Max Amp | 946 |
| Env Temp | Cold Temperature rated to -45C |
| Wire Cable Class | Class B, Class C |
| Cu Conductor Max Amp | 1,209 |
| Conductors Count | 6 |
| Assortment | Black UV Coated Pre-Insulated Connectors |
| Hex Wrench Size | 0.3125 |
| Certifications | cULus |
| Ul File No | E186991 |
| Conductor Al Size Range | 500 MCM-4 AWG |
| Package Quantity | 1 |
