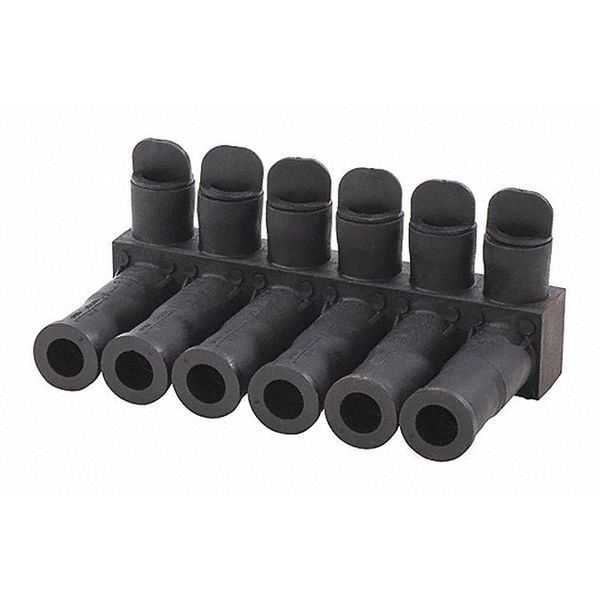

Conector de borde Polaris. 350 6 Pt. Negro.
| Color | Black |
|---|---|
| Min. Single Wire Size | 12 AWG |
| Max. Single Wire Size | 350 kcmil |
| Max. Voltage | 600 V |
| Application | Wire Termination |
| Item | Edge Connector,350-12 AWG,6 Port,Black |
| Max. Temp. | 90 deg C |
| Type | Submersible Pedestal Connector |
| Finish | Plastisol |
| Material | Plastisol |
| Assortment | Pre-Insulated Connectors |
| Conductor Al Size Range | 350 MCM – 12 AWG |
| Wire Cable Class | Class B, Class C |
| Env Temp | Cold Temperature rated to -45C |
| Ul File No | E186991 |
| Temp Rating | 90C, AL9CU |
| Max Torque | 400 |
| Conductor Cu Size Range | 350 MCM – 12 AWG |
| Voltage Rating | 600 V |
| Hex Wrench Size | 0.3125 |
| Conductor Type | Copper, Aluminum |
| Al Conductor Max Amp | 770 |
| Cu Conductor Max Amp | 985 |
| Conductors Count | 6 |
| Ansi | ANSI C119.4, C119.1 |
| Package Quantity | 1 |
