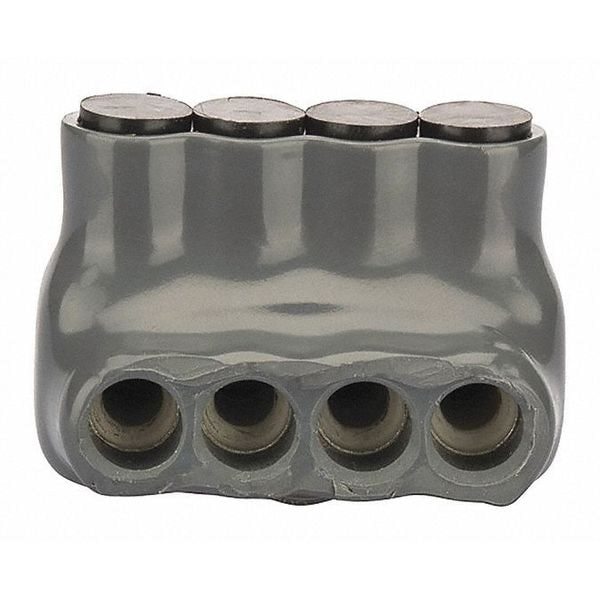

Polaris Grey Multi-Tap 6 4 Port
| Item | Multi-Tap,Grey,6-14 AWG,4 Port |
|---|---|
| Material | Plastisol |
| Type | Single-Sided Entry |
| Wire Size | (Class B,C,D) 6-14 AWG - (Class K,M,I) 6-14 AWG |
| Color | Grey |
| Application | Wire Termination |
| Voltage Rating | 600 V |
| Finish | Plastisol |
| Dimensions | L=1.980 - W=1.240 - H=1.370 |
| Temperature Rating | 90° C |
| Number Of Conductors | 4 |
| Standard | cULus |
| Environmental Conditions | 90 C |
| Wire Type | C, B, D, I, K, M |
| Assortment | Fine Stranded Wire Pre-Insulated Connectors |
| Env Temp | Cold Temperature rated to -45C |
| Max Torque | 45 |
| Conductor Cu Size Range | 6-14 AWG (CLASS B, C,D) & 6-14 AWG (Classes G, H, I, K, M, DLO) |
| Conductor Type | Copper |
| Ul File No | E186991 |
| Hex Wrench Size | 0.125 |
| Temp Rating | 90C, 9CU |
| Cu Conductor Max Amp | 75 |
| Ul Standard | B, UL 486A |
| Wire Cable Class | Class B, Class C, Class D, Class G, Class H, Class I, Class K, Class M, Class DLO |
| Package Quantity | 1 |
