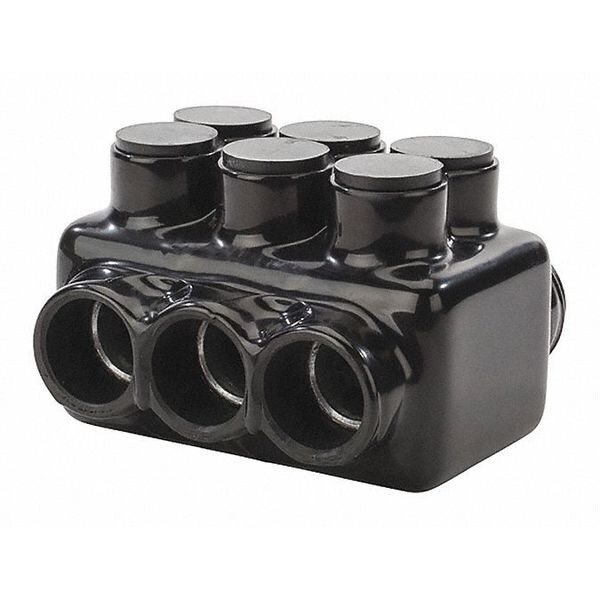

Polaris Hd Mlti-Tap 750 3 Prt. Dse
| Item | HD Insulated Multi-Tap,750,3 Port DSE |
|---|---|
| Material | Plastisol |
| Type | Double Sided Entry Heavy Duty |
| Color | Black |
| Wire Size | 750-250 MCM |
| Voltage Rating | 600 V |
| Environmental Conditions | 90 C |
| Number Of Conductors | 3 |
| Dimensions | L=4.950 - W=4.460 - H=3.300 |
| Temperature Rating | 90° C |
| Application | Wire Termination |
| Standard | cULus |
| Finish | Plastisol |
| Wire Type | C, Class B |
| Max Torque | 550 |
| Assortment | Black UV Coated Pre-Insulated Connectors |
| Ul File No | E186991 |
| Hex Wrench Size | 0.3125 |
| Conductor Cu Size Range | 750 MCM-1/0 AWG |
| Wire Cable Class | Class B, Class C |
| Cu Conductor Max Amp | 535 |
| Env Temp | Cold Temperature rated to -45C |
| Ul Standard | B, UL 486A |
| Conductor Al Size Range | 750 MCM-1/0 AWG |
| Conductor Type | Copper, Aluminum |
| Temp Rating | 90C, AL9CU |
| Al Conductor Max Amp | 435 |
| Package Quantity | 1 |
